Charging System - 1.6L: Battery: Specifications: Specification
| Item | Specification |
|---|---|
| Model type | AGM70L-DIN |
| Capacity [20HR/5HR] (AH) | 70/56 |
| Cold Cranking Amperage (A) | 760 (SAE/EN) |
| Reserve Capacity (Min) | 120 |
Information
- Model type description
- Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

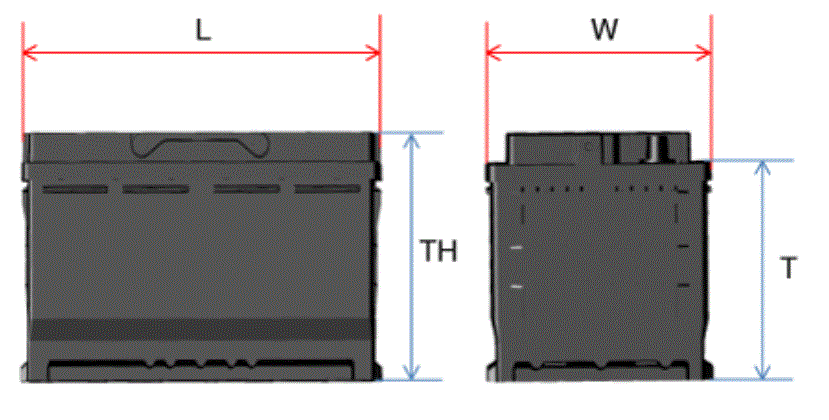

- AGM DIN Type Size
Capacity(20HR/5HR) Length Width Height Total Height L (mm) W (mm) T (mm) TH (mm) 50 / 40 205 - 207 173 - 175 164 - 168 188 - 190 60 / 48 227 - 229 173 - 175 164 - 168 188 - 190 70 / 56 276 - 278 173 - 175 164 - 168 188 - 190 80 / 64 312 - 314 173 - 175 164 - 168 188 - 190 90 / 72 351 - 353 173 - 175 164 - 168 188 - 190 105 / 84 392 - 394 173 - 175 164 - 168 188 - 190
