Repair Procedures: Installation

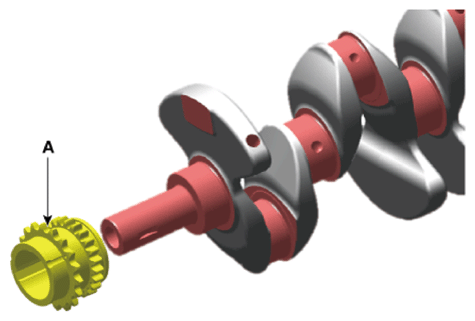

Install the crankshaft sprocket (A)

Courtesy of KIA MOTORS AMERICA, INC.

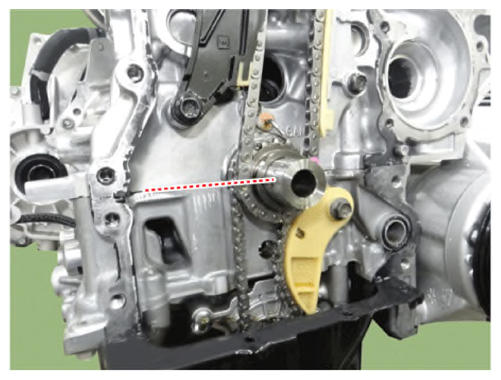

Make sure that the crankshaft key is aligned with the mounting surface of the lower crankcase. Make sure that the TDC mark on the front of the intake/exhaust CWT sprocket matches.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil pump chain.
(Refer to " Oil pump chain ")

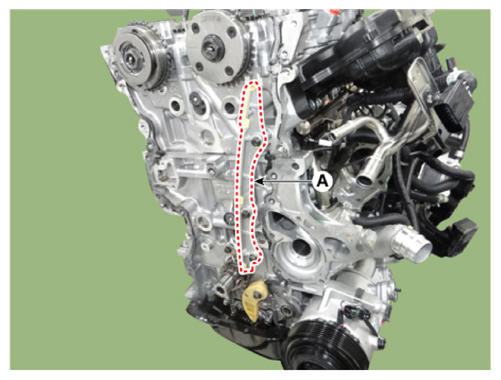

Install the timing chain guide (A).
Tightening torque:

9.8 -11.8 N.m (1.0 -1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

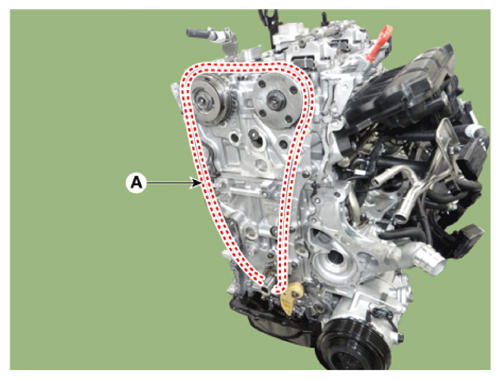

Install the timing chain (A).
Crankshaft sprocket → Timing chain guide → Intake CWT sprocket → Exhaust CWT sprocket.

Courtesy of KIA MOTORS AMERICA, INC.

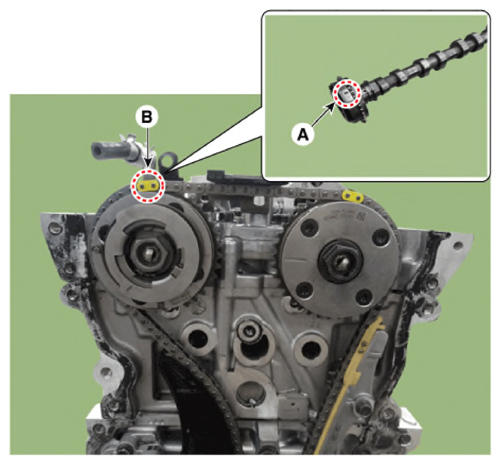

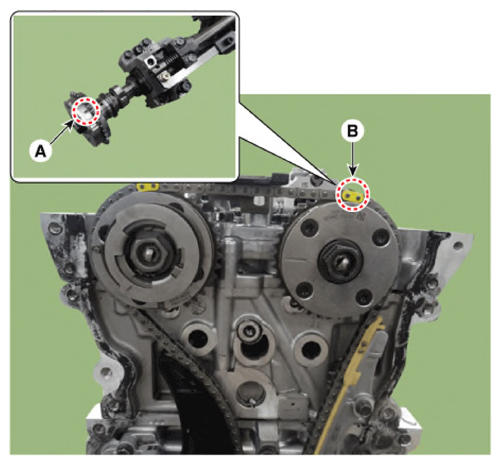

NOTE: When fitting a timing chain, fit the timing mark (A) of each sprocket to match the timing mark (B) of the timing chain.

[Intake CWT]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

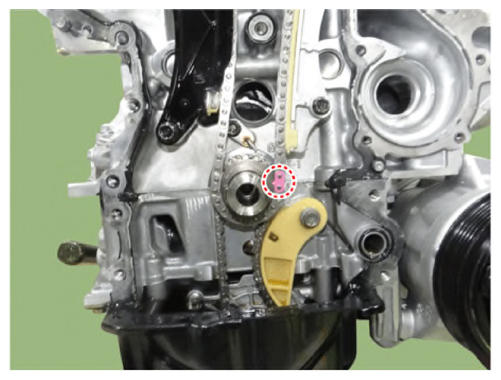

[Crankshaft]

Courtesy of KIA MOTORS AMERICA, INC.

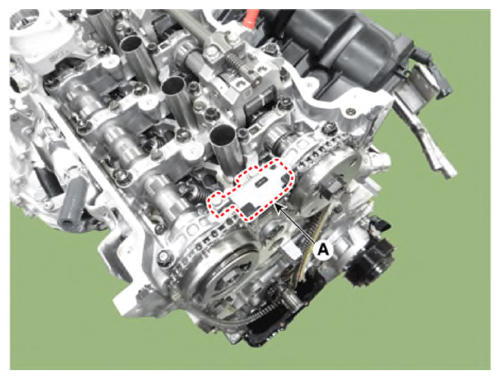

Install the timing chain cam to cam guide (A).
Tightening torque:

9.8 -11.7 N.m (1.0 -1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

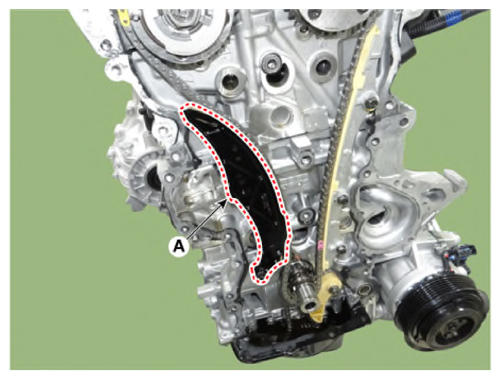

Install the timing chain tensioner arm (A).
Tightening torque:

9.8 -11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

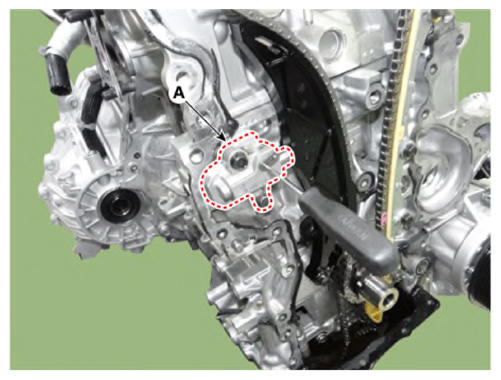

Install the timing chain tensioner (A).
Tightening torque:

9.8 -11.7 N.m (1.0 -1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

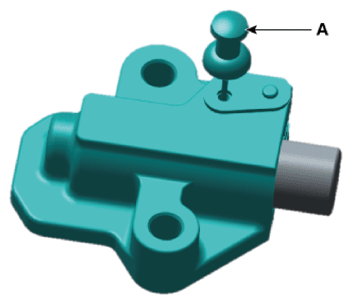

NOTE: Install the timing chain tensioner and remove the stopper pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

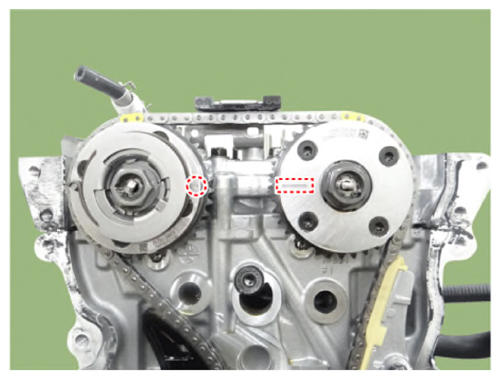

Rotate the crankshaft 2 revolutions in clockwise direction. Ensure that the TDC mark on the front of the intake/exhaust CWT sprockets match.

Courtesy of KIA MOTORS AMERICA, INC.
Install the timing chain cover.
(Refer to " Installation ")
