Repair Procedures: Removal

NOTE: If the FPCM needs to be replaced, replace the plate cover assembly.
  1. Remove the fuel pump module.

    (Refer to " Removal  ")

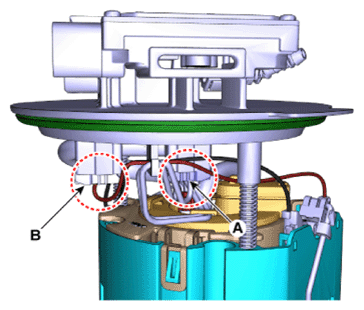

  2. Disconnect the fuel pump connector (A) and fuel sender connector (B).
    G13834192Courtesy of KIA MOTORS AMERICA, INC.

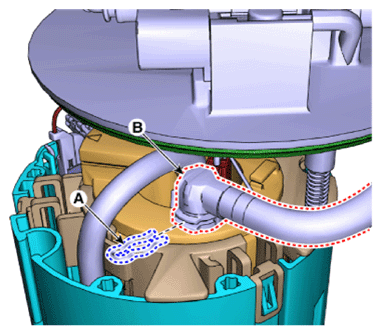

  3. After releasing the fixing clip (A), remove the fuel feed tube quick-connector (B).
    G13834193Courtesy of KIA MOTORS AMERICA, INC.

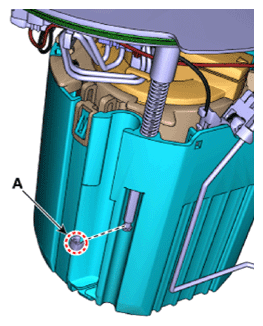

  4. Remove the stopper (A).
    G13834194Courtesy of KIA MOTORS AMERICA, INC.

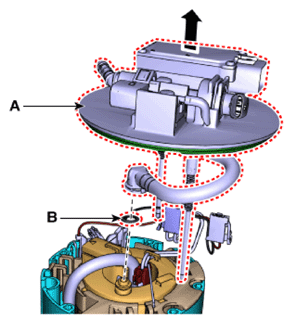

  5. Remove the plate cover assembly (A) and O-ring (B).
    G13834195Courtesy of KIA MOTORS AMERICA, INC.
