Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.6L >> Fuel Pump Module >> Repair Procedures >> Removal >> [2WD]

Repair Procedures: Removal: [2WD]

  1. Release the residual pressure in fuel line.

    (Refer to " RELEASE RESIDUAL PRESSURE  ")

  2. Remove the rear seat cushion.

    (Refer to " [Rear Seat Cushion Assembly]  ")

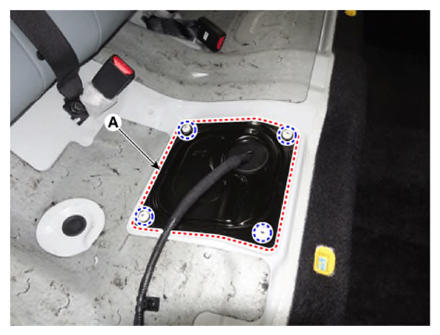

  3. Remove the fuel pump service cover (A).
    G13834053Courtesy of KIA MOTORS AMERICA, INC.

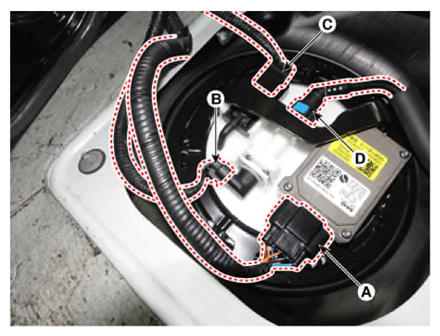

  4. Disconnect the connectors (A, B, C) and feed tube quick-connector (D).
    1. Fuel Pump Control Module (FPCM) connector
    2. Fuel Pressure Sensor (FPS) connector
    3. Fuel Tank Pressure Sensor (FTPS) connector
    G13834054Courtesy of KIA MOTORS AMERICA, INC.

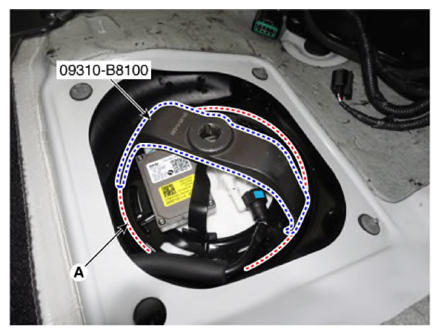

  5. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310 - B8100).
    G13834055Courtesy of KIA MOTORS AMERICA, INC.
