Repair Procedures: Removal: [4WD]

  1. Release the residual pressure in fuel line.

    (Refer to " RELEASE RESIDUAL PRESSURE  ")

  2. Remove the rear seat cushion.

    (Refer to " [Rear Seat Cushion Assembly]  ")

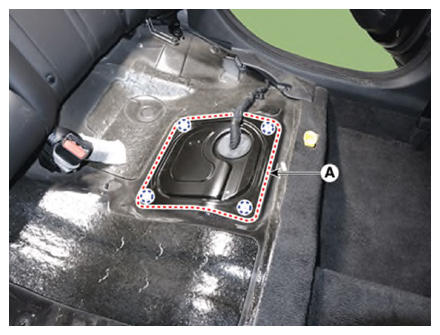

  3. Remove the fuel pump service cover (A).
    G13834056Courtesy of KIA MOTORS AMERICA, INC.

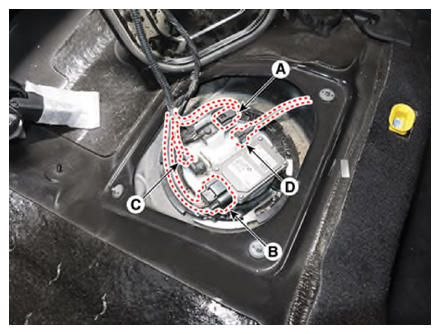

  4. Disconnect the connectors (A, B, C) and fuel feed quick-connector (D).
    1. Fuel Tank Pressure Sensor (FTPS) connector
    2. Fuel Pump Control Module (FPCM) connector
    3. Fuel Pressure Sensor (FPS) connector
    G13834057Courtesy of KIA MOTORS AMERICA, INC.

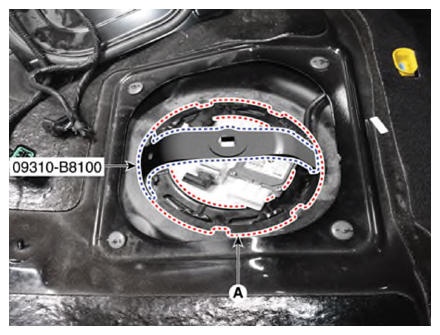

  5. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310 - B8100).
    G13834058Courtesy of KIA MOTORS AMERICA, INC.

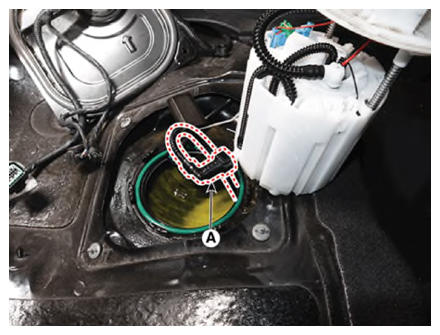

  6. Disconnect the fuel pump to suction plate hose quick-connector (A).
    G13834059Courtesy of KIA MOTORS AMERICA, INC.
