Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.6L >> Injector >> Components And Components Location >> Component

Components And Components Location: Component

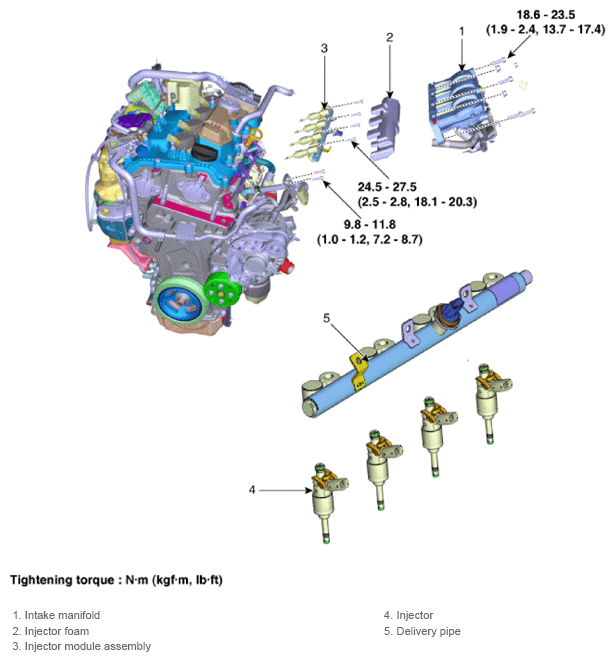

Fig 1: Injector Components Location With Torque Specification

G13834209

Courtesy of KIA MOTORS AMERICA, INC.

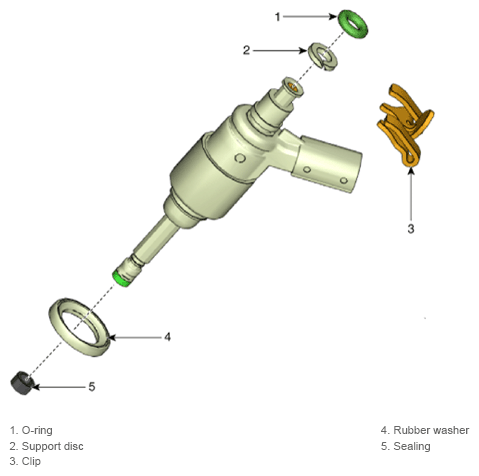

G13834210

Courtesy of KIA MOTORS AMERICA, INC.
