Repair Procedures: Removal

  1. Remove the MDPS assembly.

    (Refer to " Removal  ")

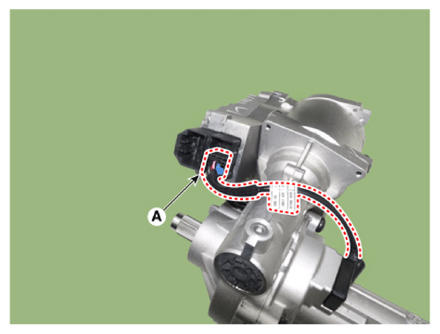

  2. Disconnect the MDPS System connector (A).
    G13834992Courtesy of KIA MOTORS AMERICA, INC.

    Information

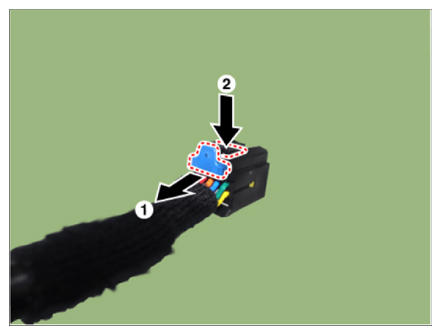

    Disconnect the connector in the following order.

    G13834993Courtesy of KIA MOTORS AMERICA, INC.

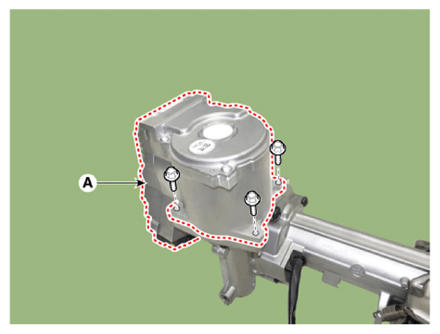

  3. Remove the MDPS System (A) after loosening the mounting bolts.

    Tightening torque:

    8.0 -12.0 N.m (0.8 - 1.2 kgf.m, 5.9 - 8.8 lb-ft)

G13834994Courtesy of KIA MOTORS AMERICA, INC.
