Terminal Function

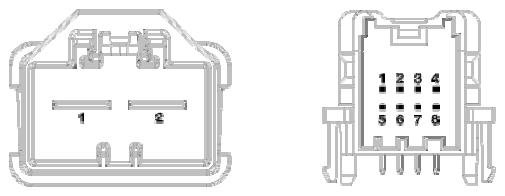

G13834976Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
Battery 1 Battery +
2 Battery -
Vehicle speed 1 Ignition signal
2 -
3 -
4 -
5 -
6 -
7 High_CAN
8 Low_CAN
