Repair Procedures: Disassembly

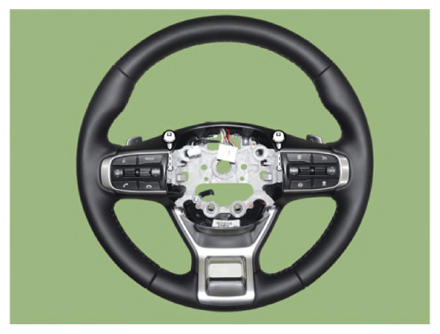

  1. Loosen the paddle shift switch mounting screw.
    G13834963Courtesy of KIA MOTORS AMERICA, INC.

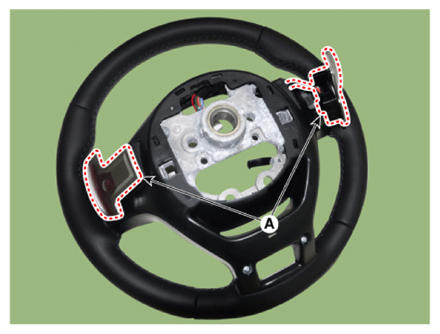

  2. Remove paddle shift connector and remove paddle shift (A).
    G13834964Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the steering wheel ornament
    1. Loosen the ornament mounting screws.

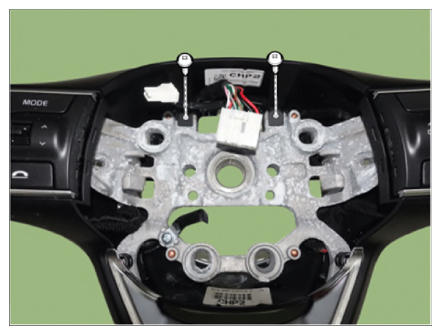

      G13834965Courtesy of KIA MOTORS AMERICA, INC.

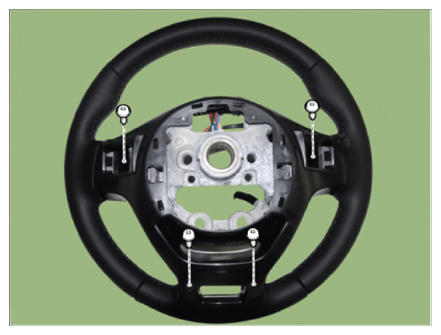

      G13834966Courtesy of KIA MOTORS AMERICA, INC.

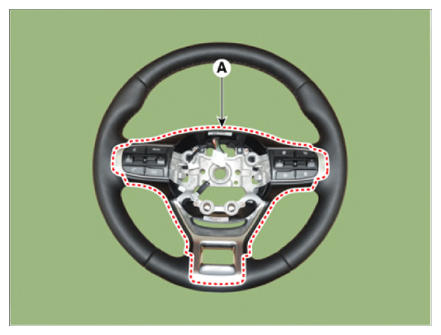

    2. Separate the steering wheel ornament (A) from the wheel body.
      G13834967Courtesy of KIA MOTORS AMERICA, INC.

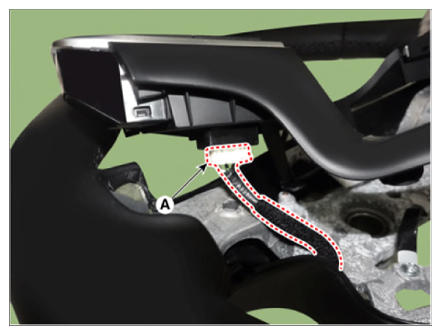

    3. Disconnect the steering wheel remote controller connectors (A).
      G13834968Courtesy of KIA MOTORS AMERICA, INC.

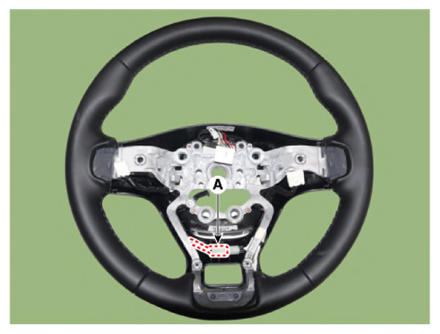

  4. Disconnect the heated steering wheel connector (A) and then remove the steering wheel lower cover.
    G13834969Courtesy of KIA MOTORS AMERICA, INC.
