Repair Procedures: Removal

  1. Shift transmission to "N".
  2. Remove the air cleaner assembly.

    (Refer to " Removal And Installation  ")

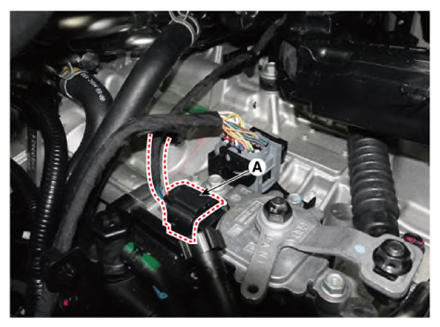

  3. Disconnect the position switch connector (A).
    G13834295Courtesy of KIA MOTORS AMERICA, INC.

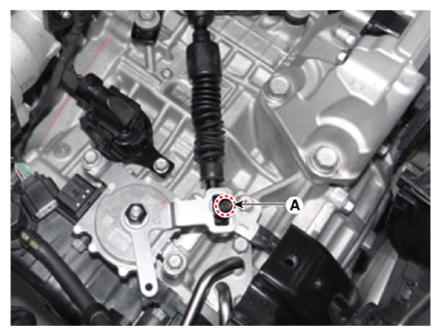

  4. Remove the shift cable after removing the nut (A).
    G13834296Courtesy of KIA MOTORS AMERICA, INC.

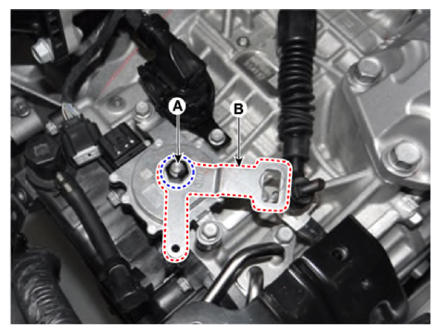

  5. Remove the manual control lever (B) and the washer after removing a nut (A).
    G13834297Courtesy of KIA MOTORS AMERICA, INC.

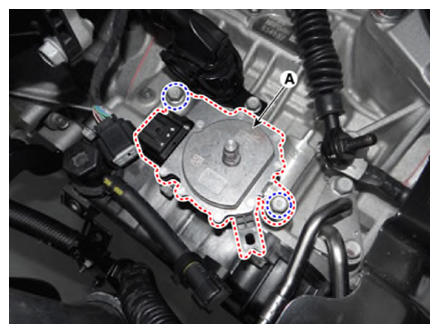

  6. Remove the position switch (A) after removing the bolts.
    G13834298Courtesy of KIA MOTORS AMERICA, INC.
