Components And Components Location: Components

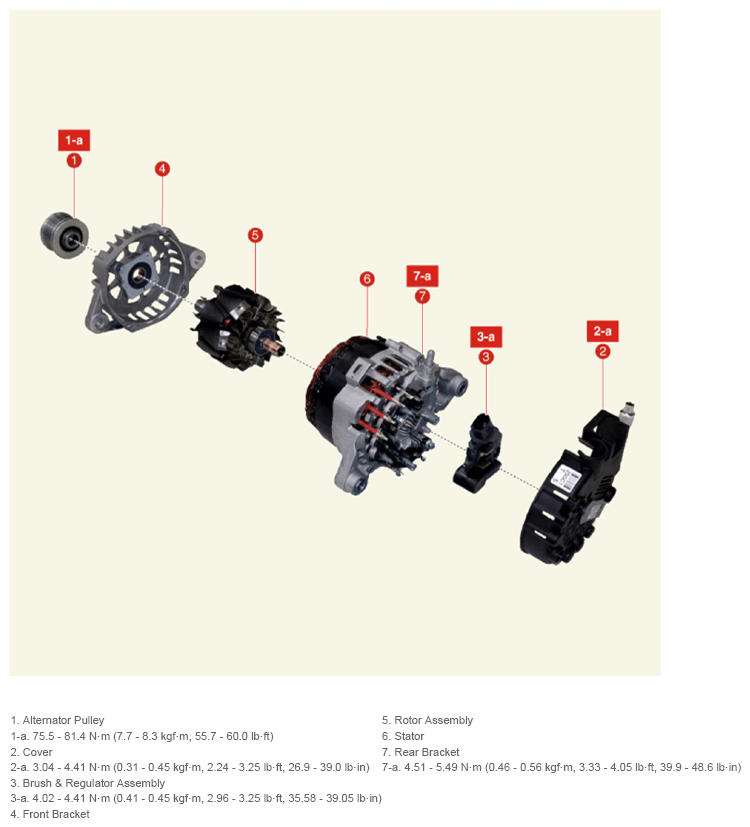

Fig 1: Alternator Components Location With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

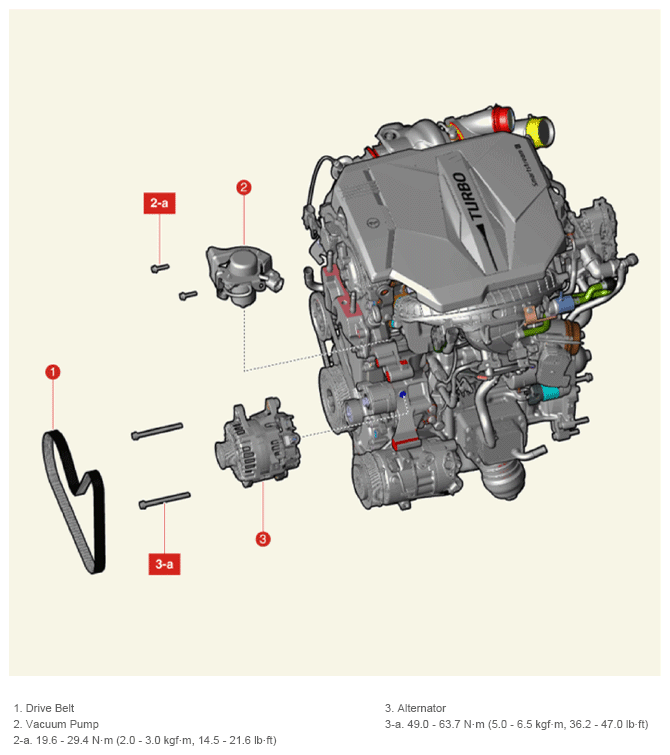

Fig 2: Alternator Components Location With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
