Fuel Delivery System - 2.5L
>>
Fuel Line
>>
Components And Components Location
>>
Component Location

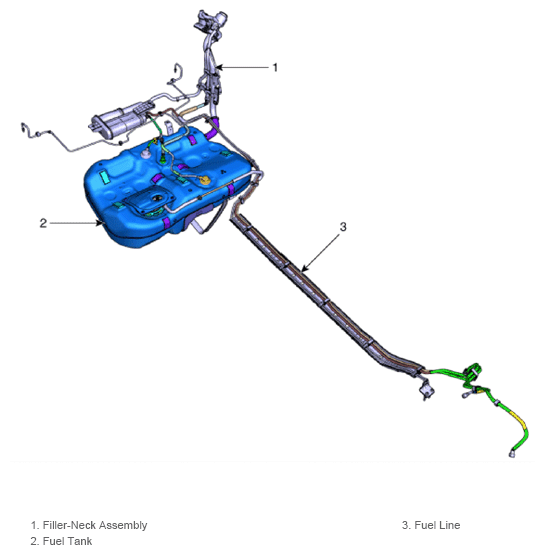

Component Location
Courtesy of KIA MOTORS AMERICA, INC.

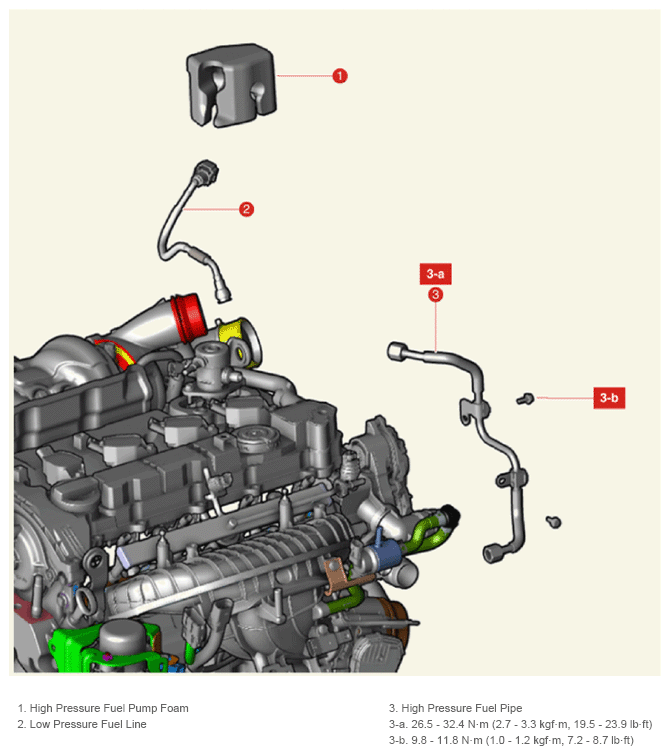

Fig 1: Fuel Line Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
