Charging System: Battery
| Item | Specification |
|---|---|
| Model Type | AGM70L-DIN |
| Capacity [5 HR/20 HR] (AH) | 56/70 |
| Cold Cranking Amperage (A) | 760 (SAE/EN) |
| Reserve Capacity (Min) | 120 |
Information
- Model type description
- Cold Cranking Ampere (CCA): CCA is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- Reserve Capacity (RC): RC is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan
belt.
- The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

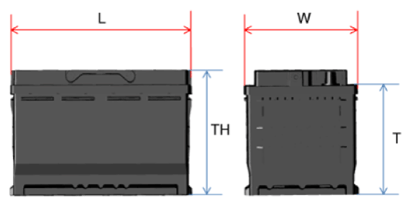

- AGM DIN Type Size
| Capacity (5HR/20HR) | Length | Width | Height | Total Height |
|---|---|---|---|---|
| L (mm) | W (mm) | T (mm) | TH (mm) | |
| 40/50 | 205 - 207 | 173 - 175 | 164 - 168 | 188 - 190 |
| 48/60 | 227 - 229 | 173 - 175 | 164 - 168 | 188 - 190 |
| 56/70 | 276 - 278 | 173 - 175 | 164 - 168 | 188 - 190 |
| 64/80 | 312 - 314 | 173 - 175 | 164 - 168 | 188 - 190 |
| 72/90 | 351 - 353 | 173 - 175 | 164 - 168 | 188 - 190 |
| 84/105 | 392 - 394 | 173 - 175 | 164 - 168 | 188 - 190 |
