Tailgate Open Switch

  1. Disconnect the negative battery terminal.
  2. Remove the tailgate latch.

    (Refer to Body - "TAILGATE LATCH ")

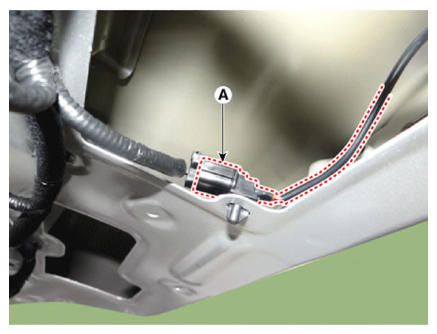

  3. Disconnect the tailgate open switch connector (A).
    G13375719Courtesy of KIA MOTORS AMERICA, INC.

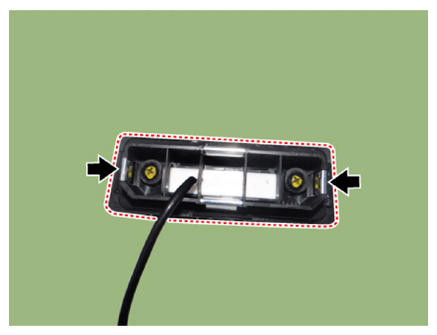

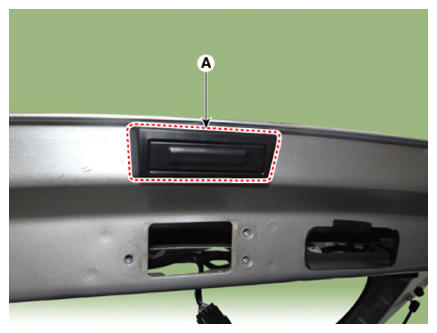

  4. Remove the tailgate open switch assembly (A) after pushing mounting hooks.
    G13375720Courtesy of KIA MOTORS AMERICA, INC.
    G13375721Courtesy of KIA MOTORS AMERICA, INC.
