Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.

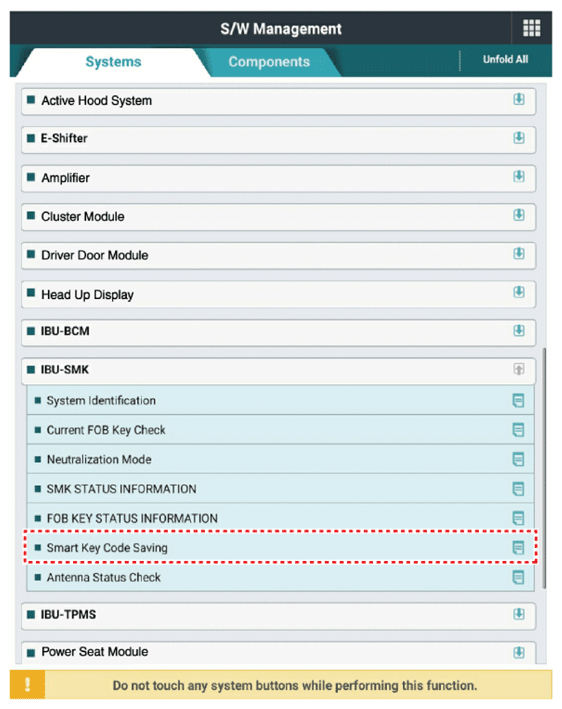

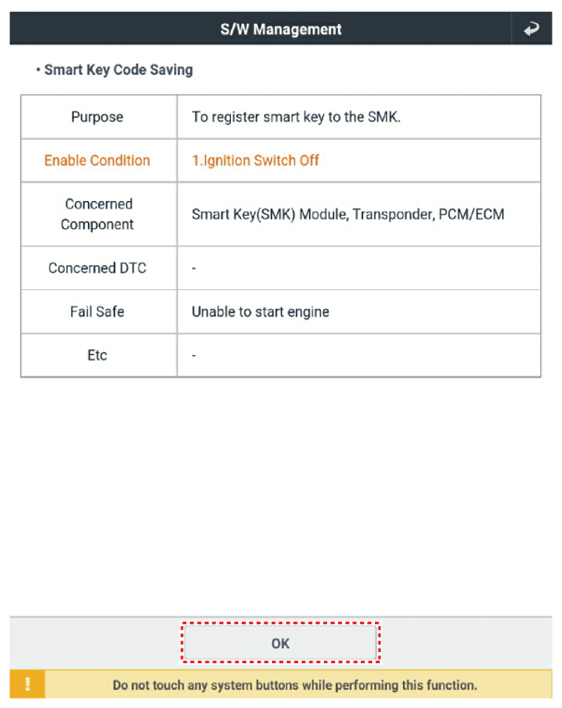

  2. Select the vehicle model and then do "Smart key code saving".
    G13375700Courtesy of KIA MOTORS AMERICA, INC.
    G13375701Courtesy of KIA MOTORS AMERICA, INC.

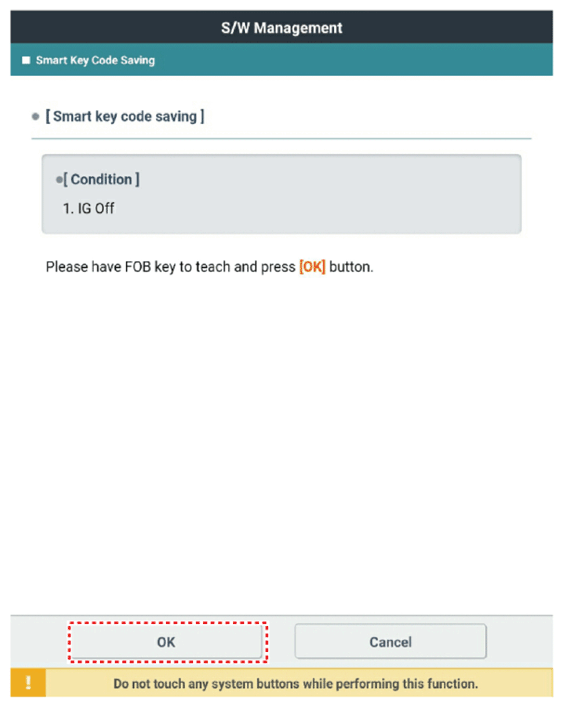

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13375702Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

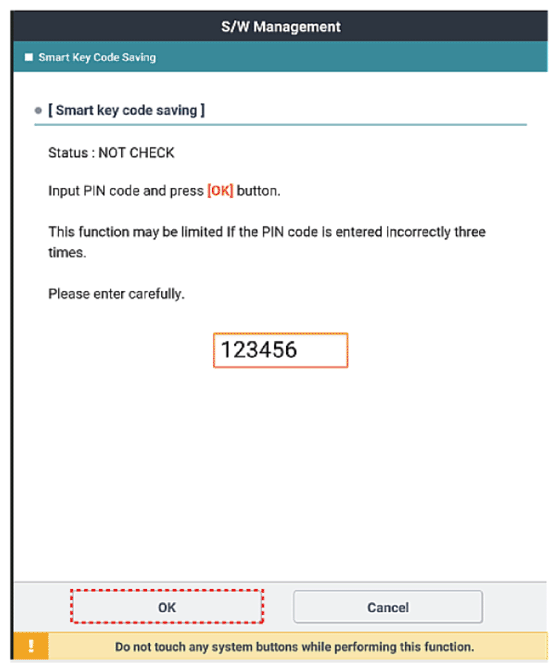

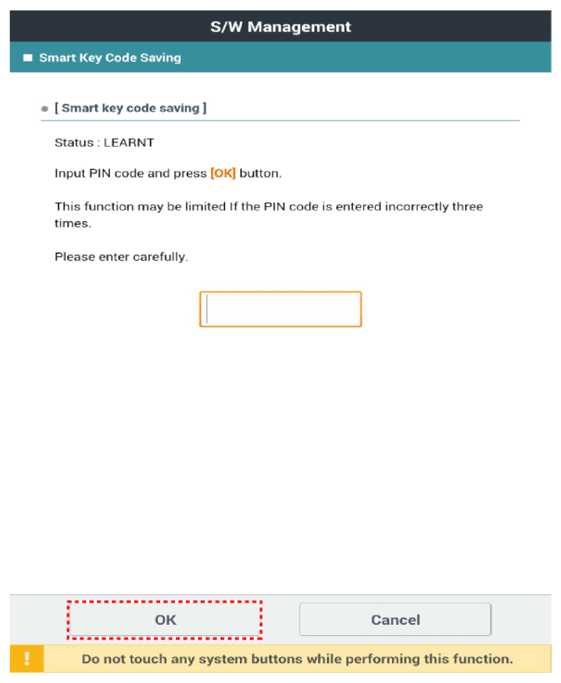

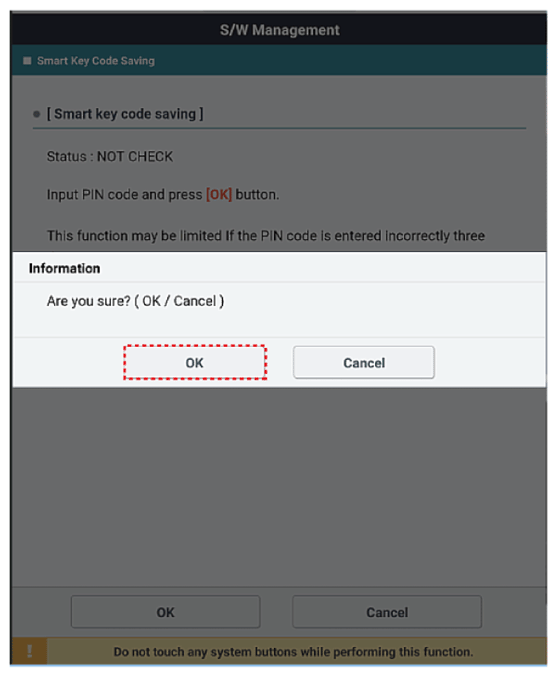

  5. Input the "Pin code" for first key teaching.
    G13375703Courtesy of KIA MOTORS AMERICA, INC.
    G13375704Courtesy of KIA MOTORS AMERICA, INC.
    G13375705Courtesy of KIA MOTORS AMERICA, INC.

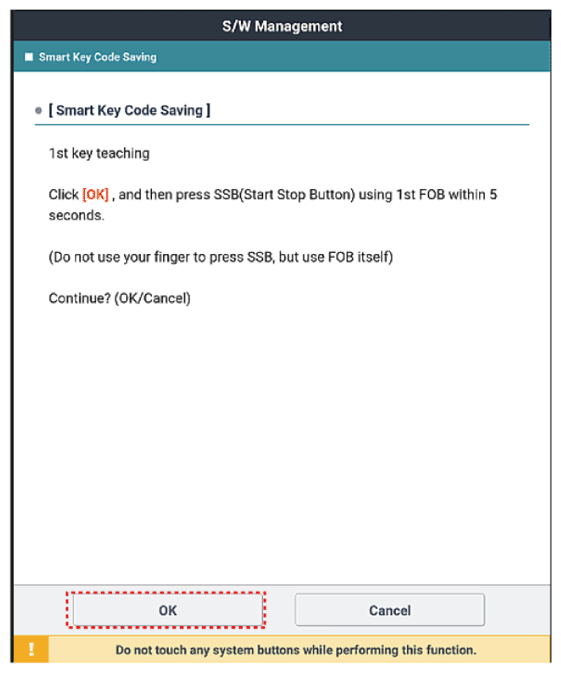

  6. Confirm the message "First key teaching completed".
    G13375706Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

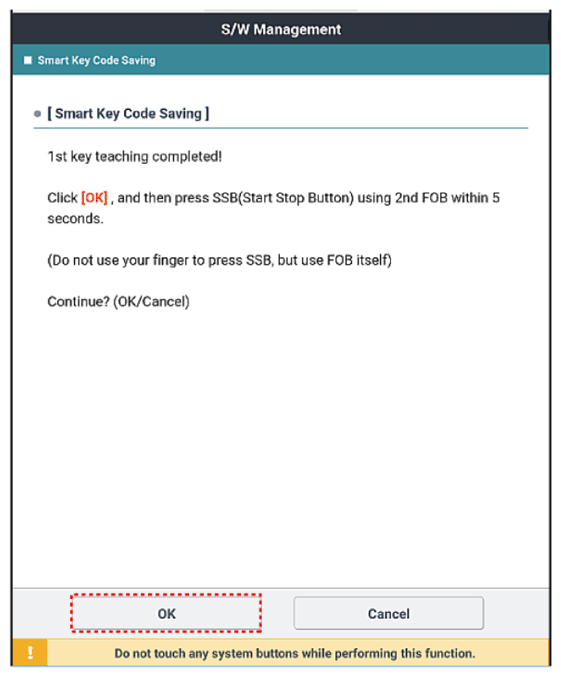

    G13375707Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

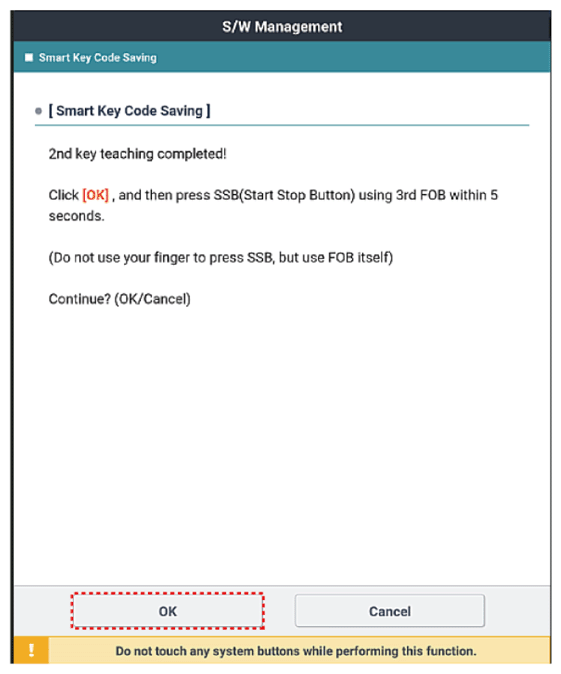

    G13375708Courtesy of KIA MOTORS AMERICA, INC.

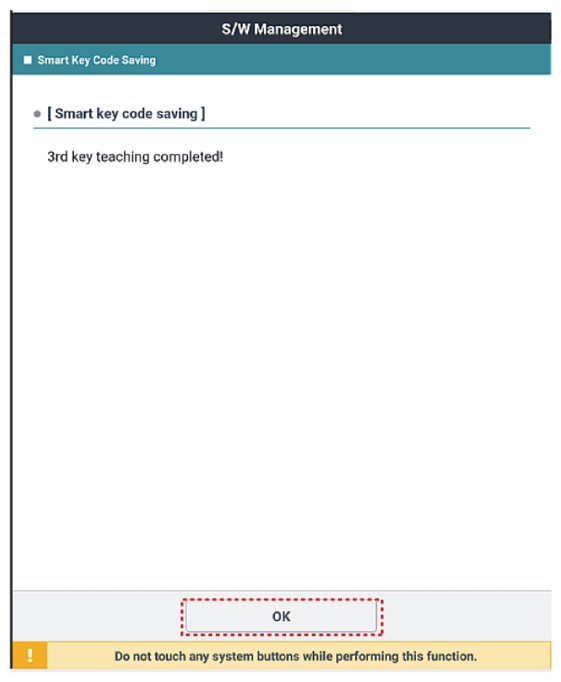

    G13375709Courtesy of KIA MOTORS AMERICA, INC.

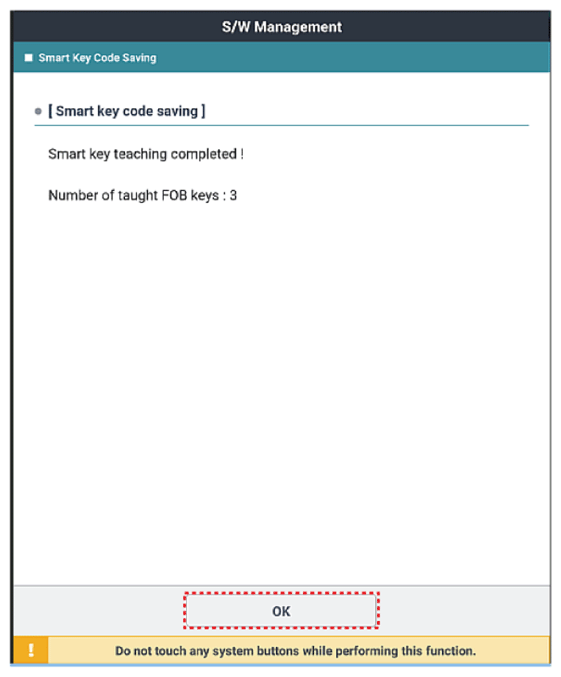

  9. Then the screen will be shown as below when key teaching process is completed.
    G13375710Courtesy of KIA MOTORS AMERICA, INC.
