Repair Procedures: Disassembly

  1. Loosen the screws and then remove the dynamic damper (A).

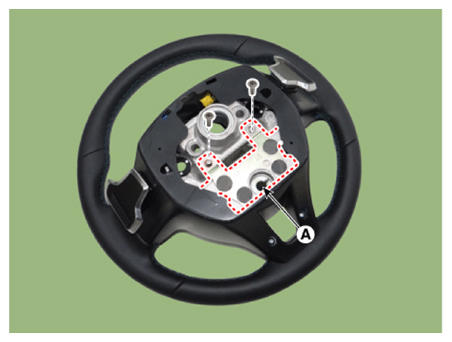

    G13374032Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the paddle shifter mounting screws.

    [LH]

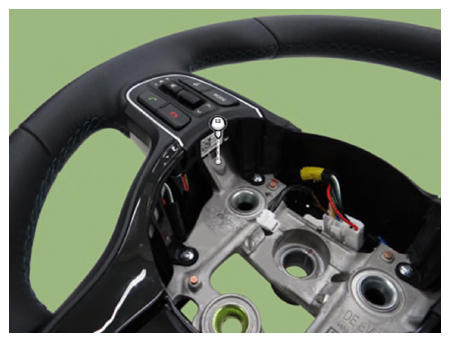

    G13374033Courtesy of KIA MOTORS AMERICA, INC.

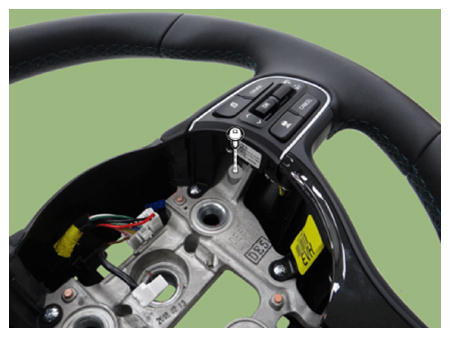

    [RH]

    G13374034Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the paddle shifters (A).

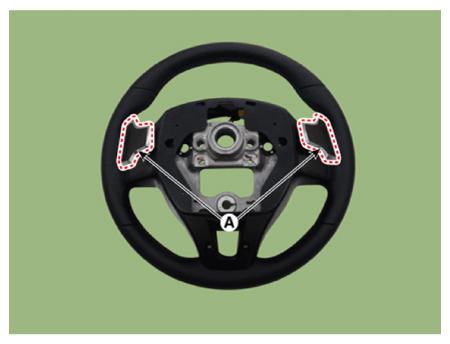

    G13374035Courtesy of KIA MOTORS AMERICA, INC.

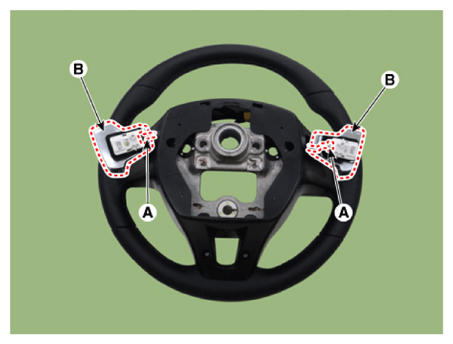

  4. Disconnect the connectors (A) and then remove the paddle shifters (B).
    G13374036Courtesy of KIA MOTORS AMERICA, INC.

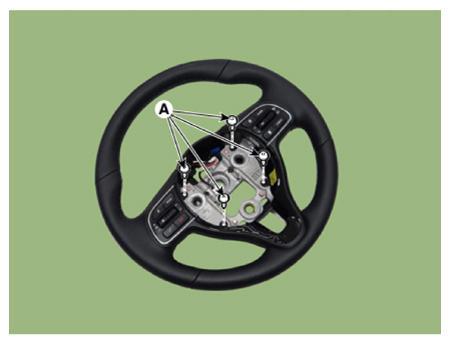

  5. Loosen the screws (A) from the lower cover.
    G13374037Courtesy of KIA MOTORS AMERICA, INC.
  6. Loosen the screws (A) from the remote control switch.
    G13374038Courtesy of KIA MOTORS AMERICA, INC.

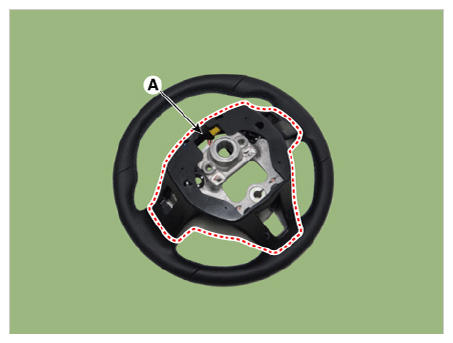

  7. Remove the lower cover (A).
    G13374039Courtesy of KIA MOTORS AMERICA, INC.

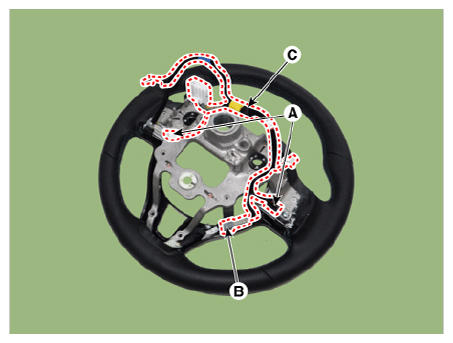

  8. Disconnect the remote control switch connectors (A), heated pad connector (B) and then remove the wiring (C).
    G13374040Courtesy of KIA MOTORS AMERICA, INC.

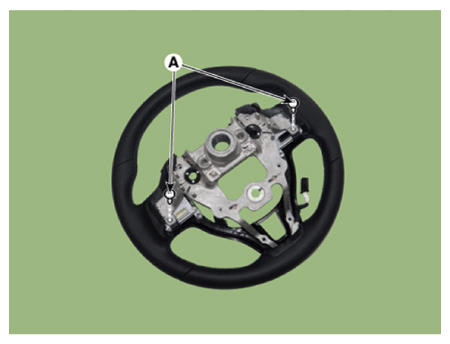

  9. Loosen the screws (A) and then remove the remote control switch assembly (B).
    G13374041Courtesy of KIA MOTORS AMERICA, INC.

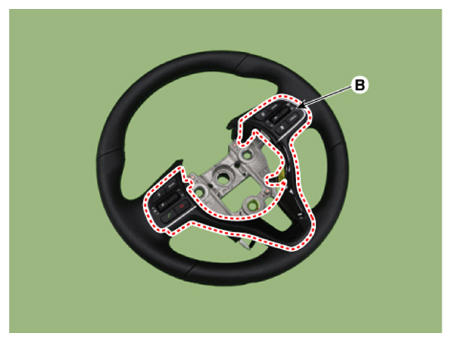

    G13374042Courtesy of KIA MOTORS AMERICA, INC.

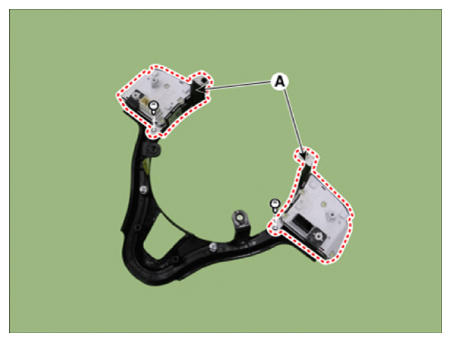

  10. Loosen the screws and then remove the remote control switch (A).
    G13374043Courtesy of KIA MOTORS AMERICA, INC.
  11. Assemble in the reverse order of disassembly.
