Run Out Inspection

  1. Jack up the vehicle.

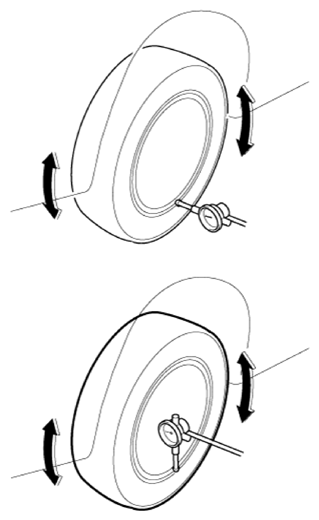

  2. Measure the wheel Run-out by using a dial indicator as shown below.
    Run-out Aluminum Steel
    Radial mm(in.) Below 0.3(0.012) Below 1.0(0.039)
    Axial mm(in.) Below 0.3(0.012) Below 0.6(0.024)
  3. If measured value exceeds the standard value, replace the wheel.
    G13373951Courtesy of KIA MOTORS AMERICA, INC.
