Repair Procedures: Installation

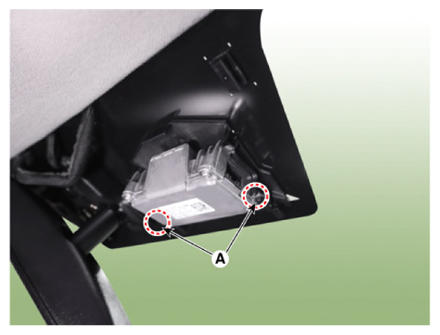

  1. Align the reference point at alignment point (A) and align front view camera.
    G13706719Courtesy of KIA MOTORS AMERICA, INC.

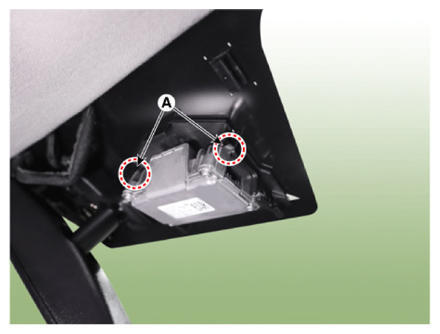

  2. Engage snaps and pivot upward to lock point (A).
    G13706720Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Front view camera is fully assembled when a single click sound is heard.
  3. Connect the connector and front view camera cover.

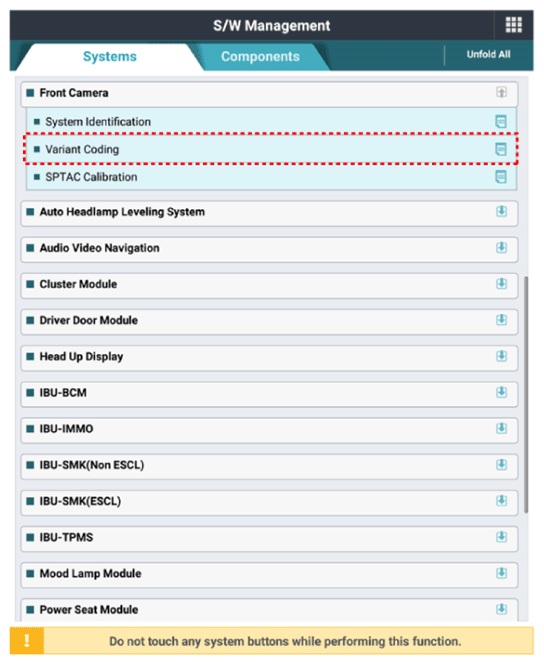

  4. When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the KDS.
    G13706721Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the front view camera unit calibration.

    (Refer to Front View Camera Unit - "ADJUSTMENT ")
