Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.
    1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

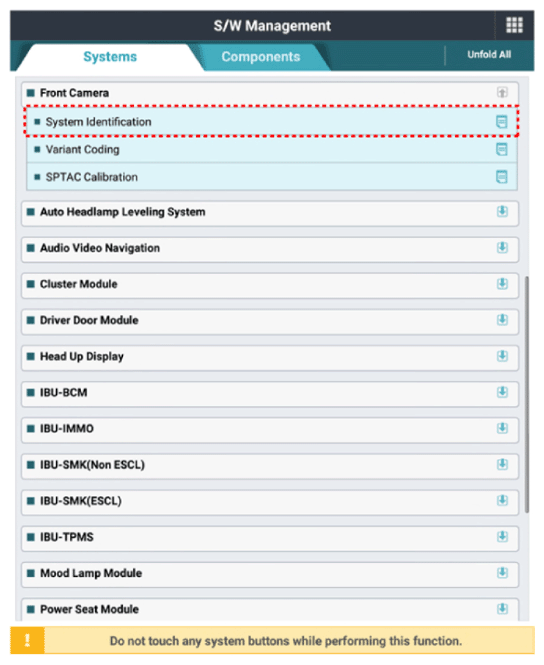

    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".
    G13706713Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal.

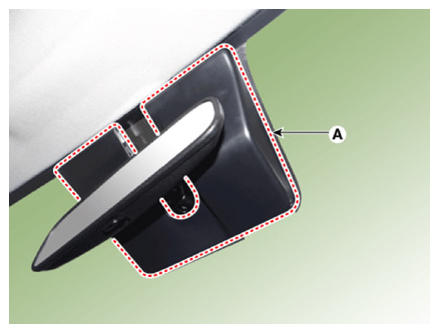

  3. Remove the multi cover (A).

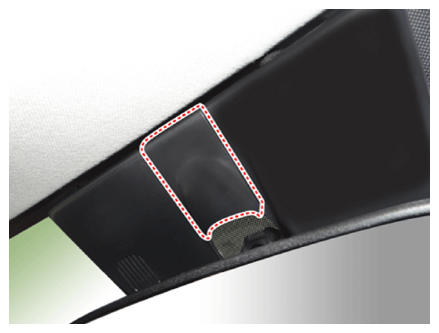

    G13706714Courtesy of KIA MOTORS AMERICA, INC.
    G13706715Courtesy of KIA MOTORS AMERICA, INC.

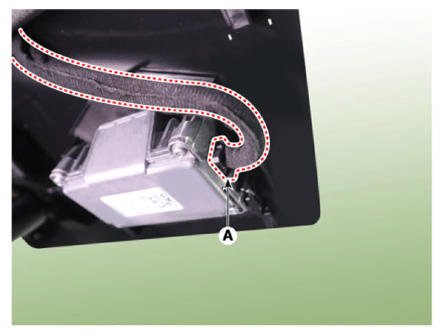

  4. Disconnect the front view camera connector (A).
    G13706716Courtesy of KIA MOTORS AMERICA, INC.

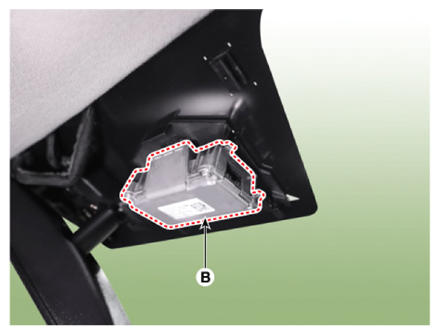

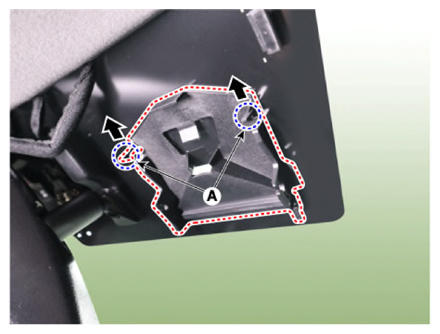

  5. Separate the fixed points (A) of coupler, remove the front view camera (B).
    G13706717Courtesy of KIA MOTORS AMERICA, INC.
    G13706718Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When separate the fixed points (A), be careful not to damage it.
