Assist/Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front right door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

  3. Disconnect the power window switch connector from the door trim.

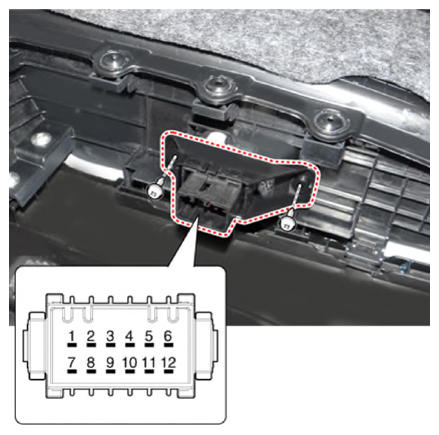

    [Assist power window switch]

    G13706455Courtesy of KIA MOTORS AMERICA, INC.

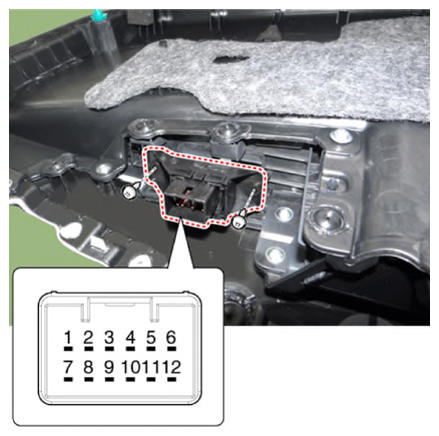

    [Rear Power Window Switch]

    G13706456Courtesy of KIA MOTORS AMERICA, INC.

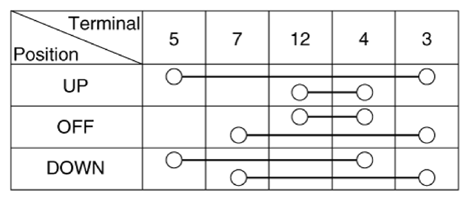

  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    G13706457Courtesy of KIA MOTORS AMERICA, INC.
