Home >> Kia >> 2021 >> Rio LX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Repair Procedures >> Removal >> Assist Power Window Switch

Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front right door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

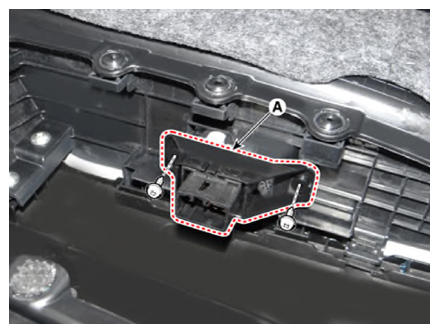

  3. Remove the power window switch assembly (A) after loosening the mounting screws.
    G13706448Courtesy of KIA MOTORS AMERICA, INC.
