Repair Procedures: Replacement

  1. Pull down rear door window glass by pressing the power window glass switch.
  2. Remove the rear door trim.

    (Refer to Rear Door - "REAR DOOR TRIM ")

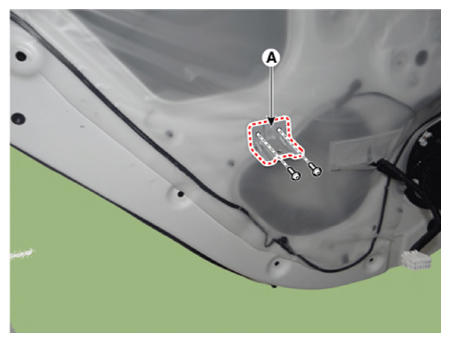

  3. Remove the door pull handle mounting support (A) after loosening the screws.
    G13705864Courtesy of HYUNDAI MOTOR AMERICA

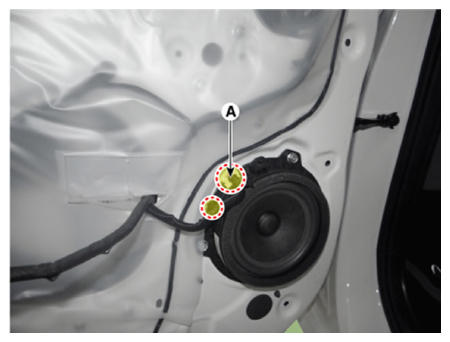

  4. Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.
    G13705865Courtesy of HYUNDAI MOTOR AMERICA

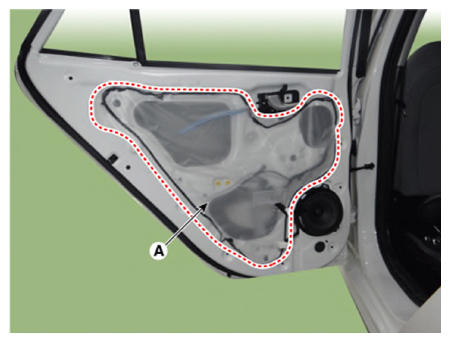

  5. Remove the front door trim seal (A).
    G13705866Courtesy of HYUNDAI MOTOR AMERICA

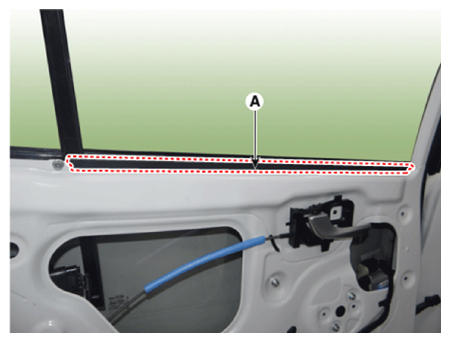

  6. Remove the front door belt inside weather strip (A).
    G13705867Courtesy of HYUNDAI MOTOR AMERICA

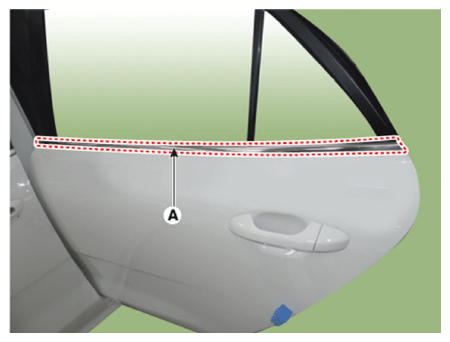

  7. Remove the front door belt outside weather strip (A).
    G13705868Courtesy of HYUNDAI MOTOR AMERICA

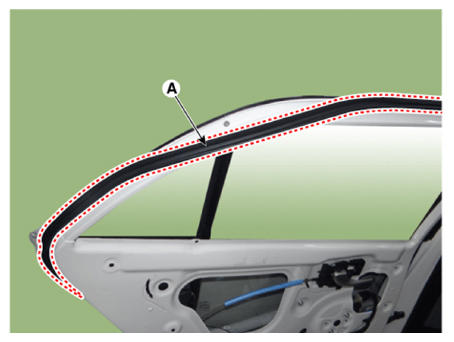

  8. Separate the door side weatherstrip (A).
    G13705869Courtesy of HYUNDAI MOTOR AMERICA

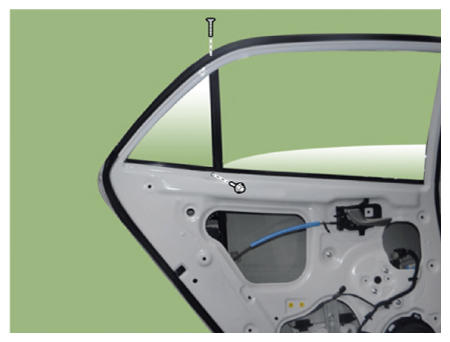

  9. Loosen the mounting screw and bolt.
    G13705870Courtesy of HYUNDAI MOTOR AMERICA

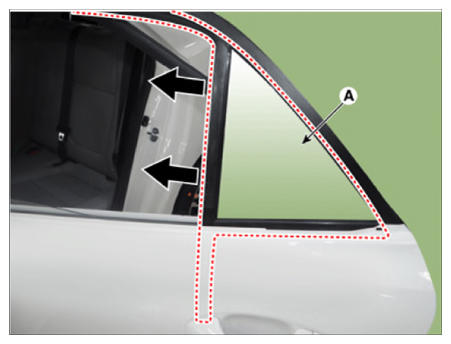

  10. Remove the quarter fixed glass & molding (A).
    G13705871Courtesy of HYUNDAI MOTOR AMERICA

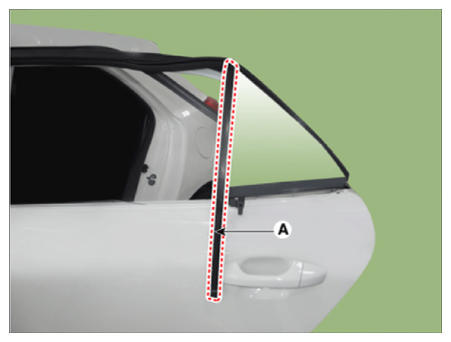

  11. Remove the rear door molding (A).
    G13705872Courtesy of HYUNDAI MOTOR AMERICA

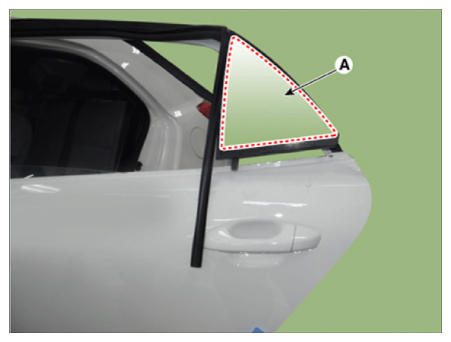

  12. Remove the quarter fixed glass (A).
    G13705873Courtesy of HYUNDAI MOTOR AMERICA
  13. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips.
