Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to Body Side Moldings - "ROOF SIDE MOLDING ")
Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

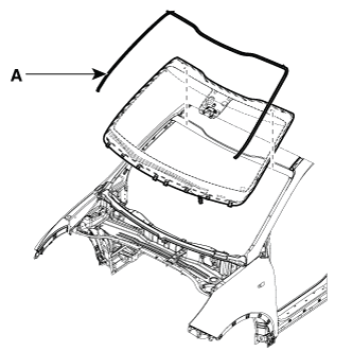

Using a remover, remove the windshield glass side molding assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Cut out the adhesive using a cutter (A).
Information

Use a cutter with a blade length between 8-12 inches.

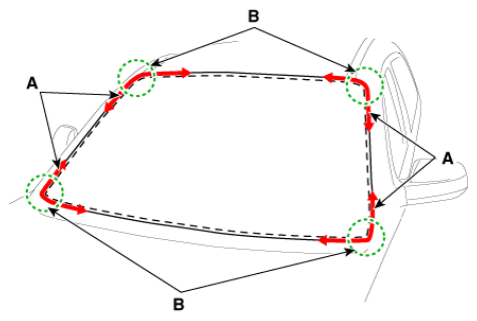

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA

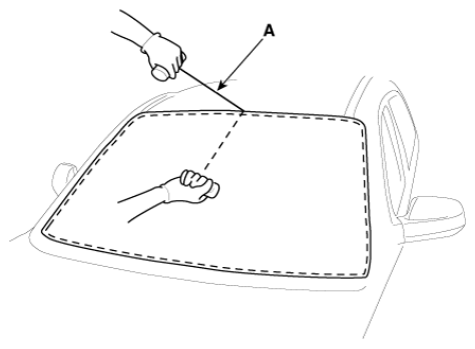

If the piano wire (A) is visible outside the chassis, push it back into the chassis.

Courtesy of HYUNDAI MOTOR AMERICA

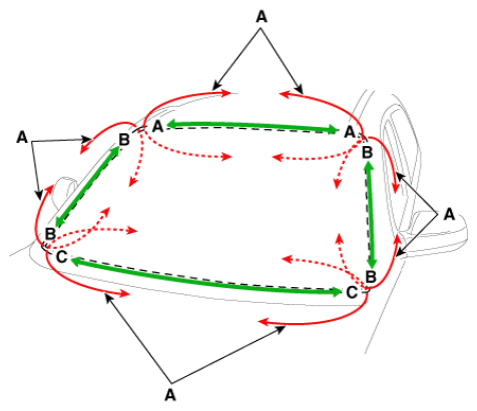

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA

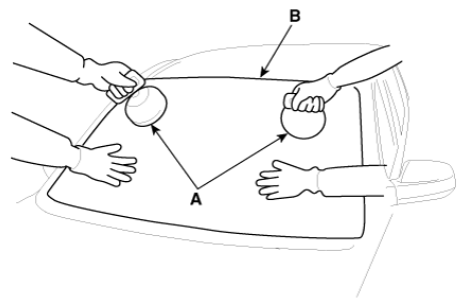

Carefully lift up the windshield glass (B) by using a glass holder (A).

Courtesy of HYUNDAI MOTOR AMERICA
