Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

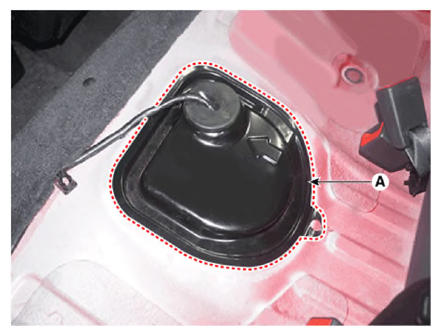

  3. Remove the fuel pump service cover (A).
    G13704740Courtesy of KIA MOTORS AMERICA, INC.

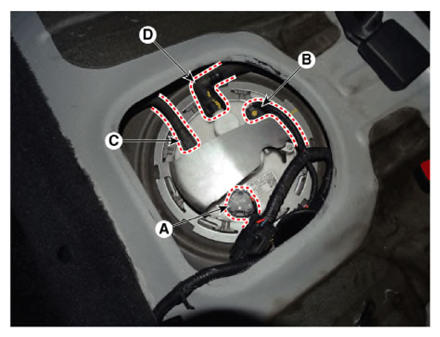

  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel tank pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick connector (C).
  7. Disconnect the vapor tube quick connector (D).
    G13704741Courtesy of KIA MOTORS AMERICA, INC.

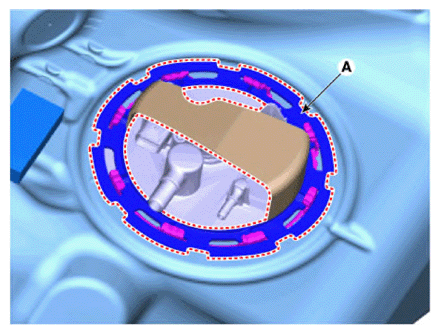

  8. Remove the locking ring (A) by using the SST (09310-F3100) from the fuel tank.
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G13704742Courtesy of KIA MOTORS AMERICA, INC.

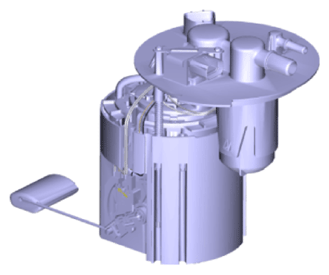

  9. Remove the fuel pump from the fuel tank.
    G13704743Courtesy of KIA MOTORS AMERICA, INC.
