Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

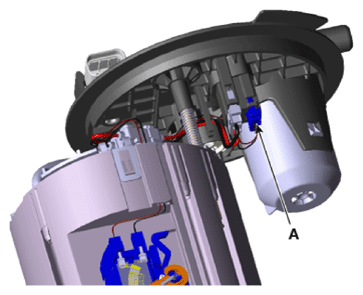

  2. Disconnect the fuel sender connector (A).
    G13704760Courtesy of KIA MOTORS AMERICA, INC.

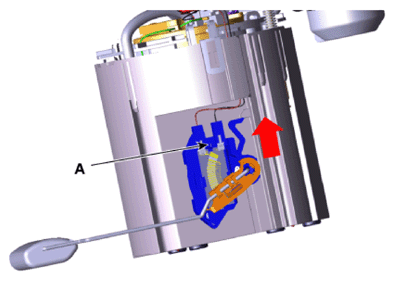

  3. Remove the fuel sender (A) in the direction of an arrow.
    G13704761Courtesy of KIA MOTORS AMERICA, INC.
    G13704762Courtesy of KIA MOTORS AMERICA, INC.
