Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

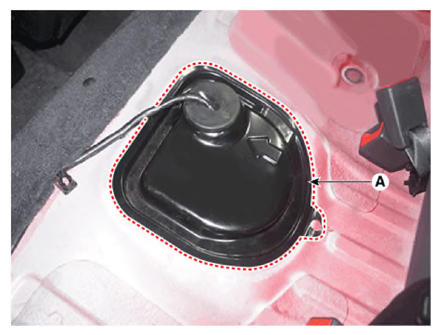

  3. Remove the fuel pump service cover (A).
    G13704734Courtesy of KIA MOTORS AMERICA, INC.

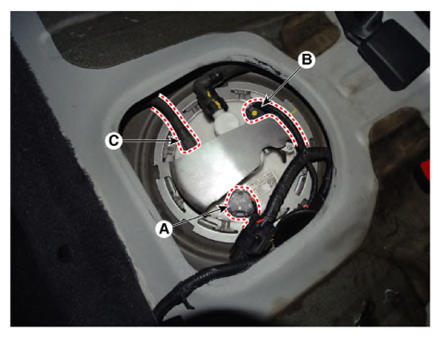

  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel tank pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick connector (C).
    G13704735Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle.

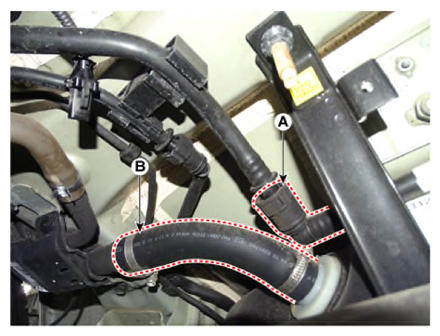

  8. Disconnect the vapor tube quick connector (A).
  9. Disconnect the fuel filler hose (B).
    G13704736Courtesy of KIA MOTORS AMERICA, INC.

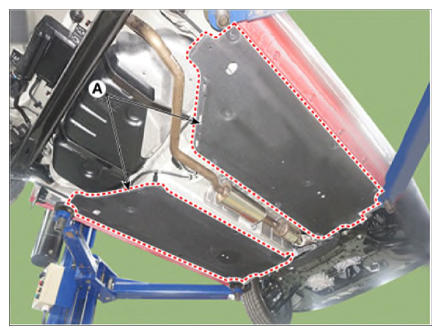

  10. Remove the side under cover (A).
    G13704737Courtesy of KIA MOTORS AMERICA, INC.

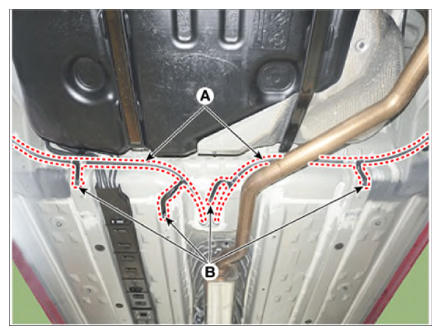

  11. Remove the brake line (A) bracket mounting bolts (B).
    G13704738Courtesy of KIA MOTORS AMERICA, INC.

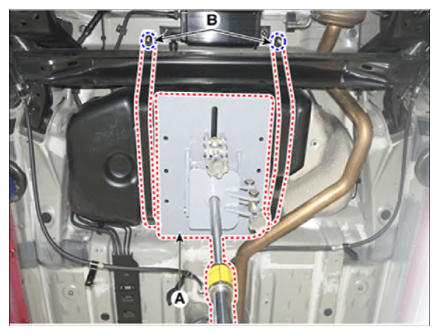

  12. Support the fuel tank with jack (A).
  13. Remove the fuel tank installation nut (B) and then loosen the fuel tank.

    Fuel tank band installation nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

    G13704739Courtesy of KIA MOTORS AMERICA, INC.
