Toe adjustment

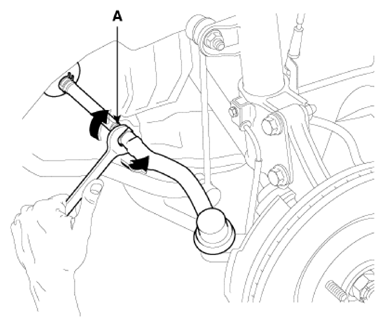

- Loosen the tie rod end lock nut.
- Remove the bellows clip to prevent the bellows from being twisted.
- Adjust the toe by screwing or unscrewing the tie rod. Toe adjustment should be made by turning the right and left tie rods by the same amount.
Toe-in
Total: 0.15° ± 0.2°
Individual: 0.075° ± 0.1°
- When completing the toe adjustment, install the bellows clip and tighten the tie rod end lock nut to specified torque.
Tightening torque:
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)
- Perform the Steering Angle Sensor calibration.
- MDPS: (Refer to Steering System - "Steering Angle Sensor (SAS) Calibration ")
