Home >> Kia >> 2021 >> Sedona EX >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Ignition Switch Assembly >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13046952Courtesy of KIA MOTORS AMERICA, INC.
    G13046953Courtesy of KIA MOTORS AMERICA, INC.

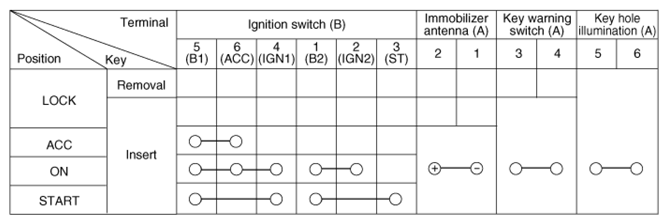

  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
    G13046954Courtesy of KIA MOTORS AMERICA, INC.
