Repair Procedures: Installation
- With a putty knife, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire delta fixed glass flange.
Information
- Do not scrape down to the painted surface of the body, as damaged paint may interfere with proper bonding.
- Mask off surrounding surfaces before painting.
- Clean the body bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water away from the surface.
- Apply a light coat of body primer to the outside of the body panel.
Information
- The primed surface should never be touched by hand. By doing so, the adhesive may not bond to the glass properly, causing a leakage after the windshield glass is installed.
- Do not apply body primer to the glass.
- Keep water, dust, and abrasive materials away from the primer.
- Peel off the tape from the delta fixed glass.

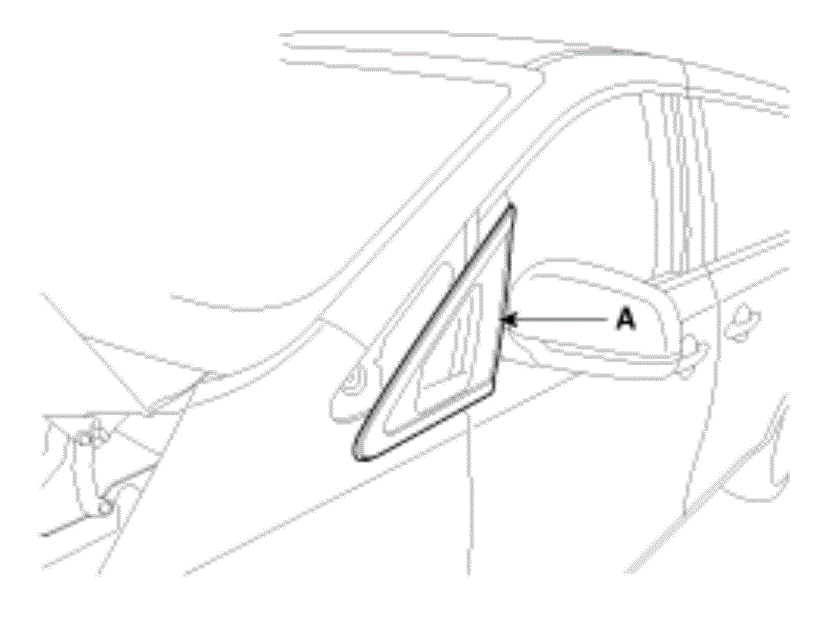

- Install the delta fixed glass (A) mounting nuts.
Tightening torque:
3.9 ~ 4.4 N.m (0.4 ~ 0.45 kgf.m, 2.9 ~ 3.3 lb-ft)
- Install the front pillar trim.
