Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the rain sensor (if equipped).
Remove the auto defogging sensor.
(Refer to Heating, Ventilation And Air Conditioning - "AUTO DEFOGGING SENSOR ")
Disconnect the windshield glass defogger connector.

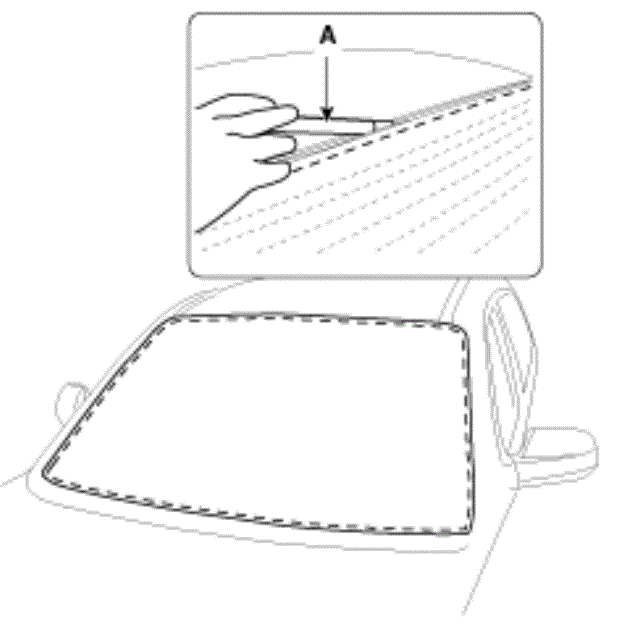

Cut out the adhesive using a cutter (A).
Information

Please use a cutter with a blade length between 8-12 inches.

Courtesy of KIA MOTORS AMERICA, INC.

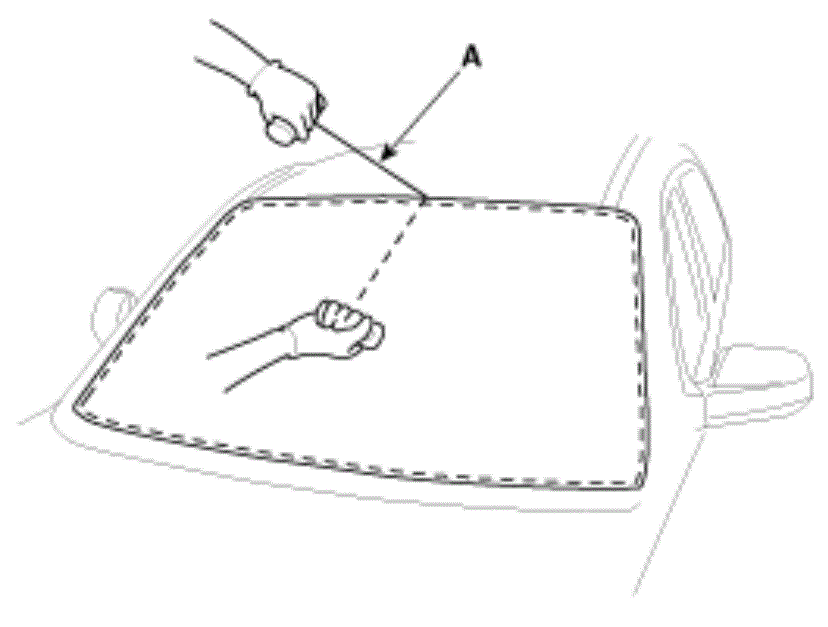

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.

Courtesy of KIA MOTORS AMERICA, INC.
If the piano wire is visible inside the chassis, tuck in the piano wire (A) line.

Courtesy of KIA MOTORS AMERICA, INC.

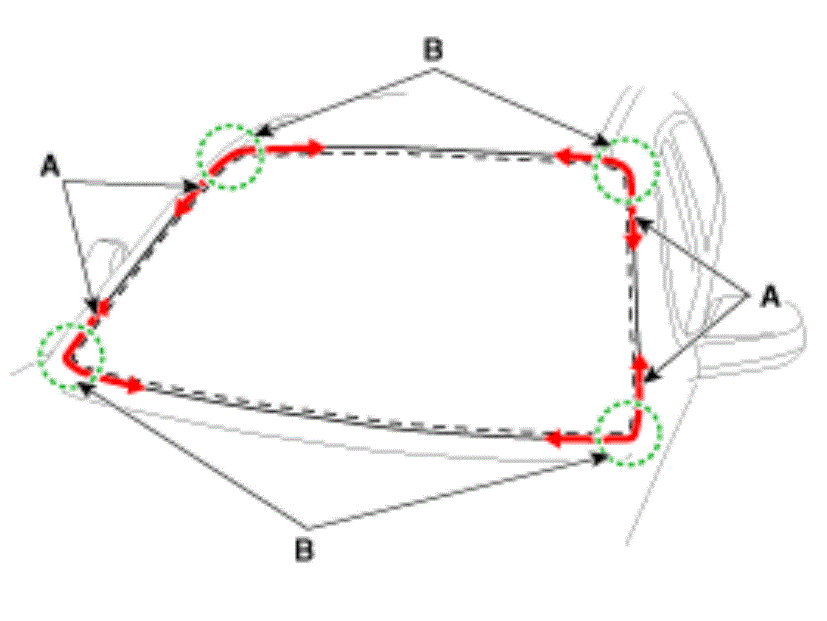

Cut off the sealant on (A-A), (B-B), and (C-C) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as friction heat may be generated while working on the wires.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

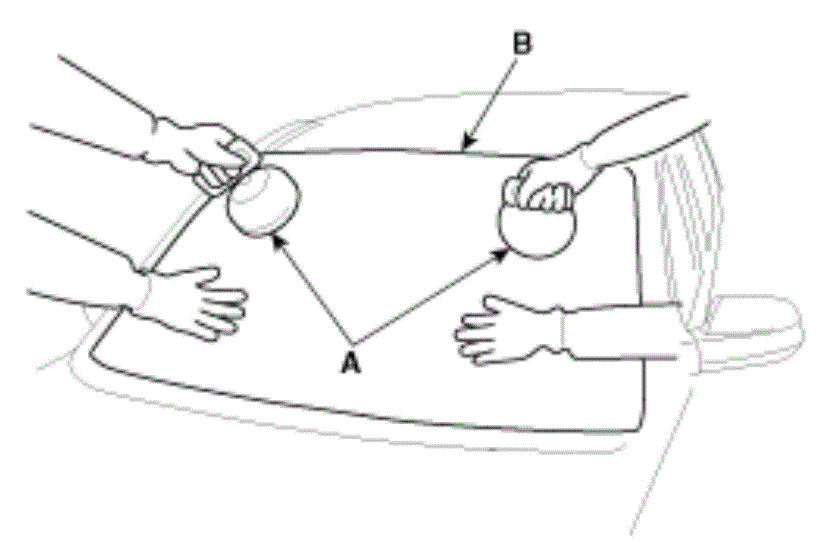

Remove the windshield glass (B) carefully using the glass holder (A).

Courtesy of KIA MOTORS AMERICA, INC.
