Components & Components Location: Components

Courtesy of KIA MOTORS AMERICA, INC.

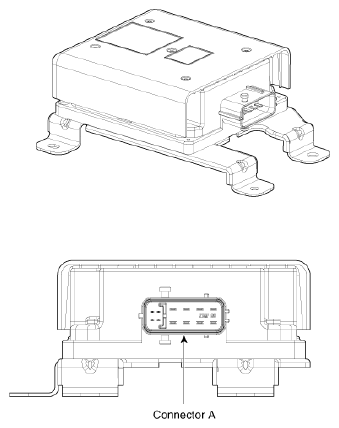

Connector A
Courtesy of KIA MOTORS AMERICA, INC.
No.	Description
1	AC power1_output
2	GND
3	IGN2
4	Battery (+)
5	ALT L_input
6	AC ON IND (+) crash pad_output
7	AC power2_output
8	GND 1
9	IGN 2
10	Battery (+)
11	AC ON IND (+)_output
12	AC ON switch_input
