Repair Procedures: Removal

  1. Set No. 1 cylinder to TDC/compression.
    1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
      G13043940Courtesy of KIA MOTORS AMERICA, INC.
    2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).
    G13043941Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not rotate engine counterclockwise.
  2. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

    NOTE: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.

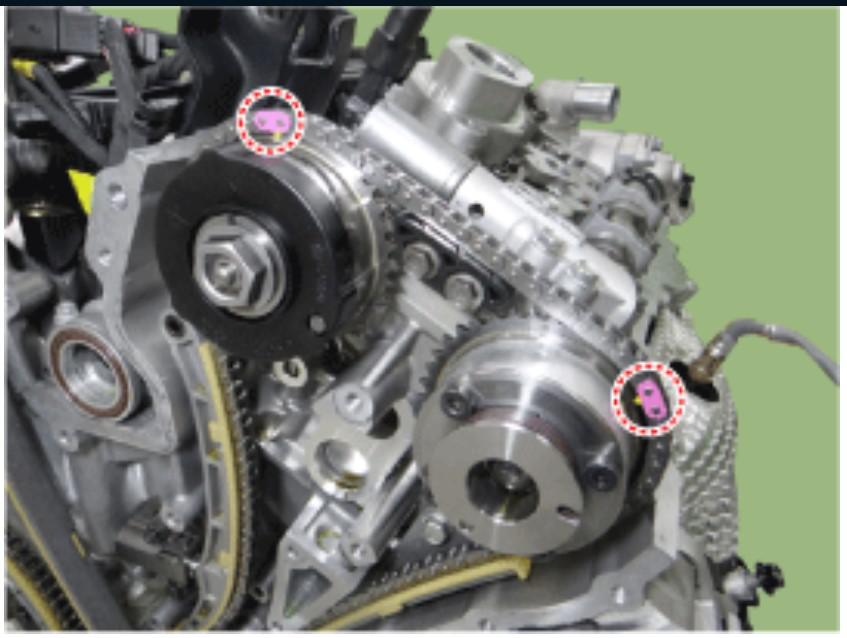

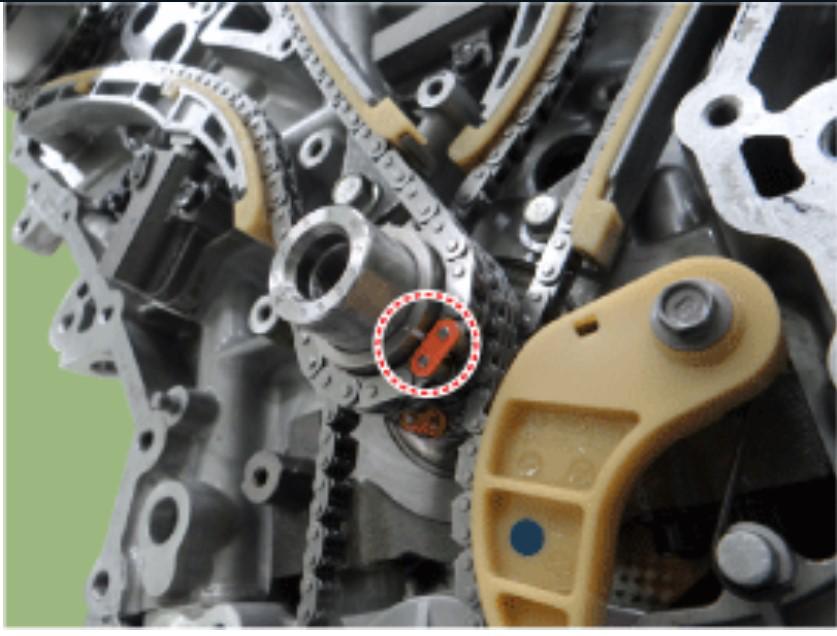

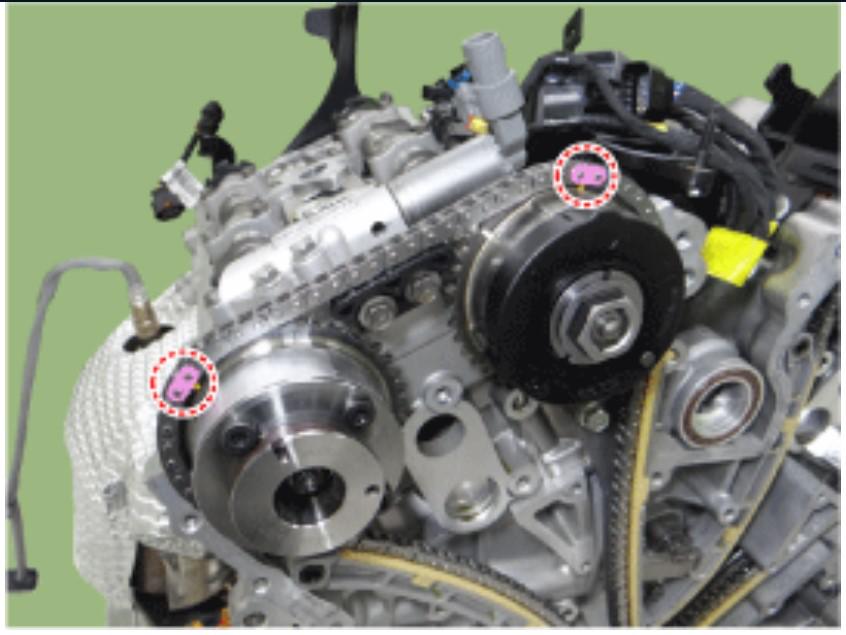

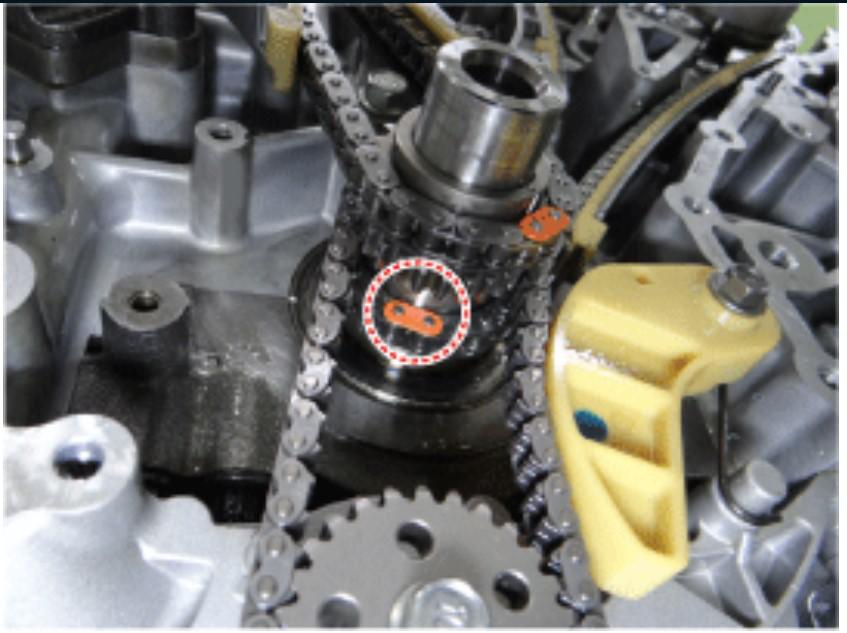

    NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.
    G13043942Courtesy of KIA MOTORS AMERICA, INC.
    G13043943Courtesy of KIA MOTORS AMERICA, INC.
    G13043944Courtesy of KIA MOTORS AMERICA, INC.
    G13043945Courtesy of KIA MOTORS AMERICA, INC.

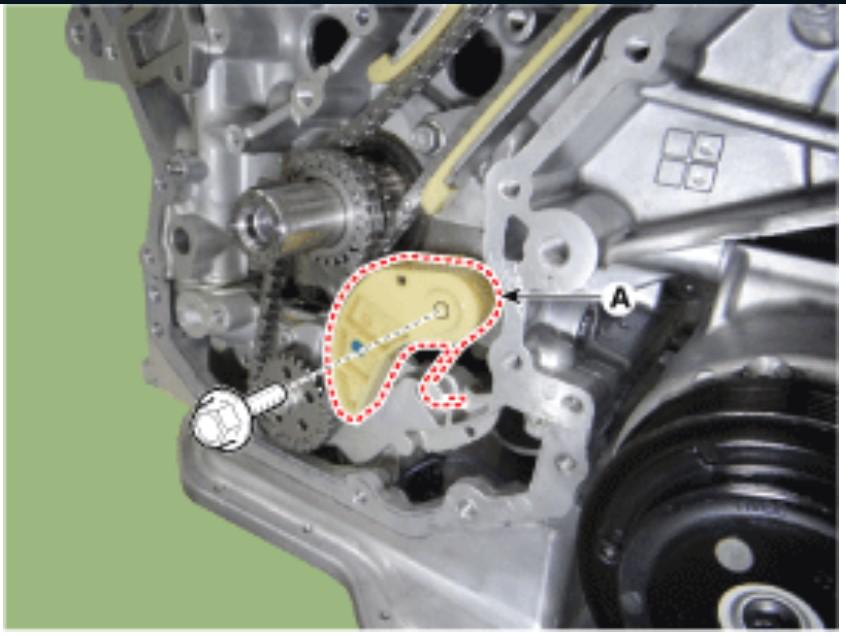

  3. Remove the oil pump chain tensioner assembly (A).
    G13043946Courtesy of KIA MOTORS AMERICA, INC.

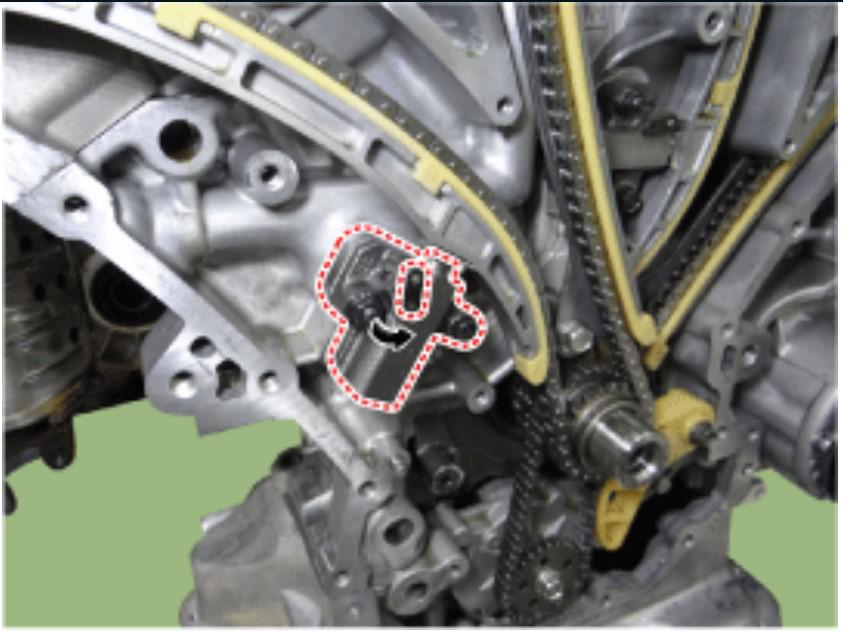

  4. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13043947Courtesy of KIA MOTORS AMERICA, INC.

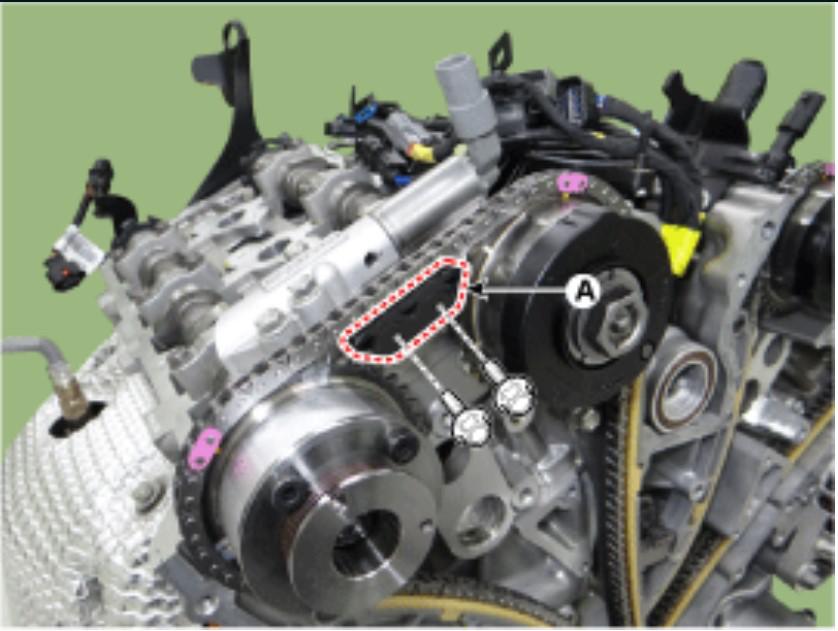

  5. Remove the RH timing chain cam to cam guide (A).
    G13043948Courtesy of KIA MOTORS AMERICA, INC.

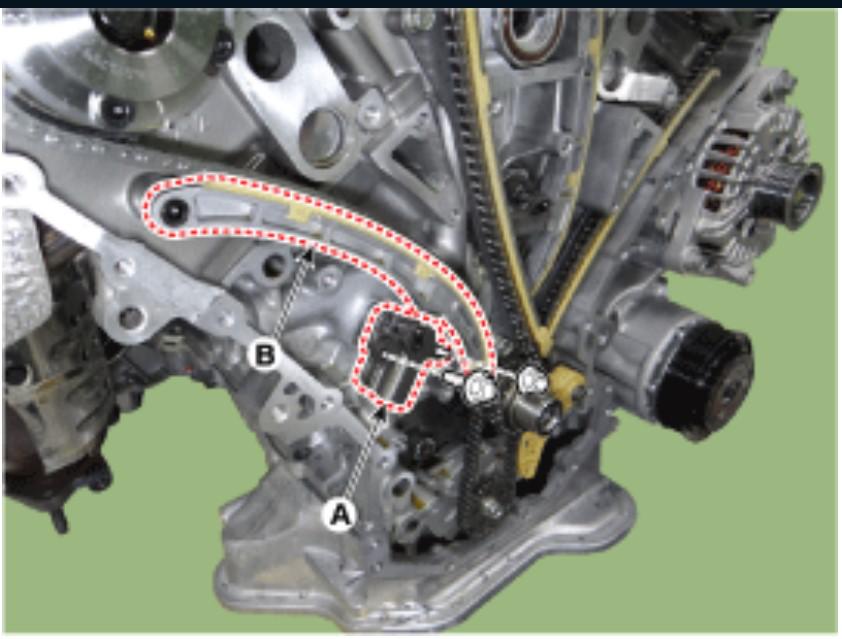

  6. Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).
    G13043949Courtesy of KIA MOTORS AMERICA, INC.

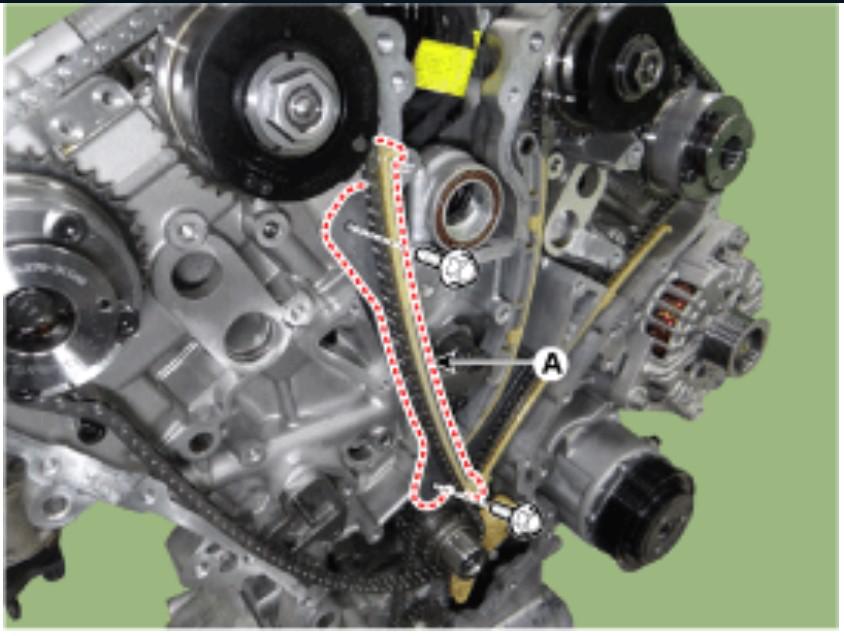

  7. Remove the RH timing chain guide (A).
    G13043950Courtesy of KIA MOTORS AMERICA, INC.

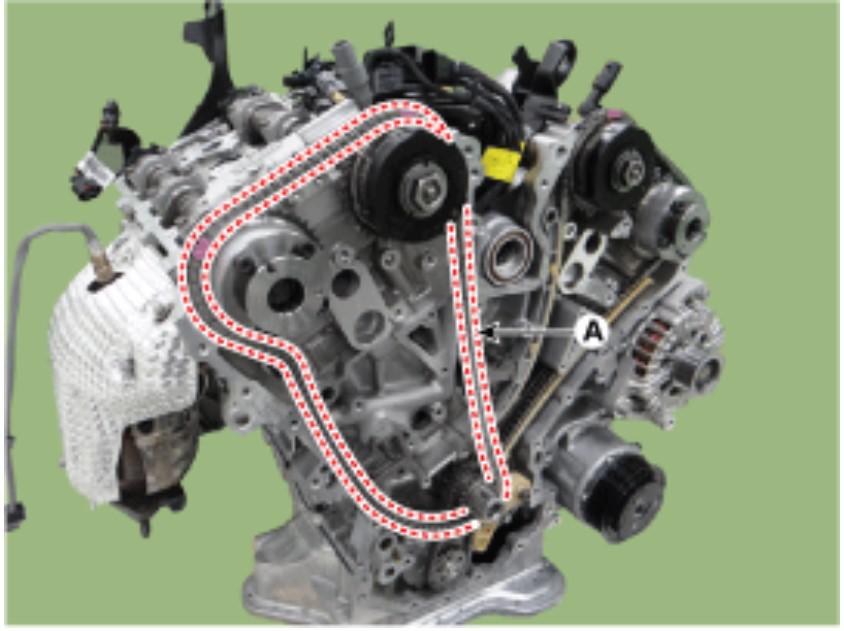

  8. Remove the RH timing chain (A).
    G13043951Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the crankshaft sprocket (A) (RH camshaft drive).
    G13043952Courtesy of KIA MOTORS AMERICA, INC.

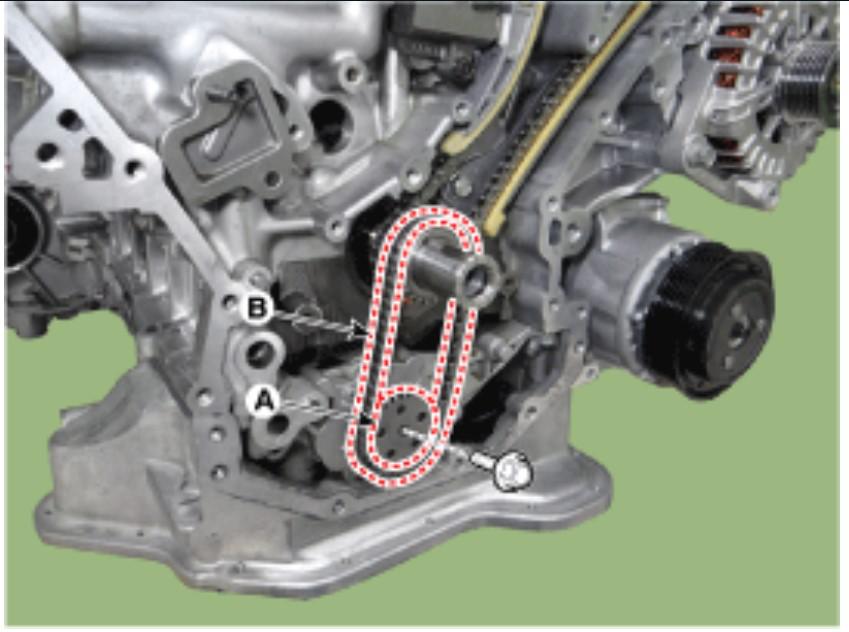

  10. Remove the oil pump chain sprocket (A) and oil pump chain (B).
    G13043953Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the crankshaft sprocket (A) (Oil pump drive).
    G13043954Courtesy of KIA MOTORS AMERICA, INC.

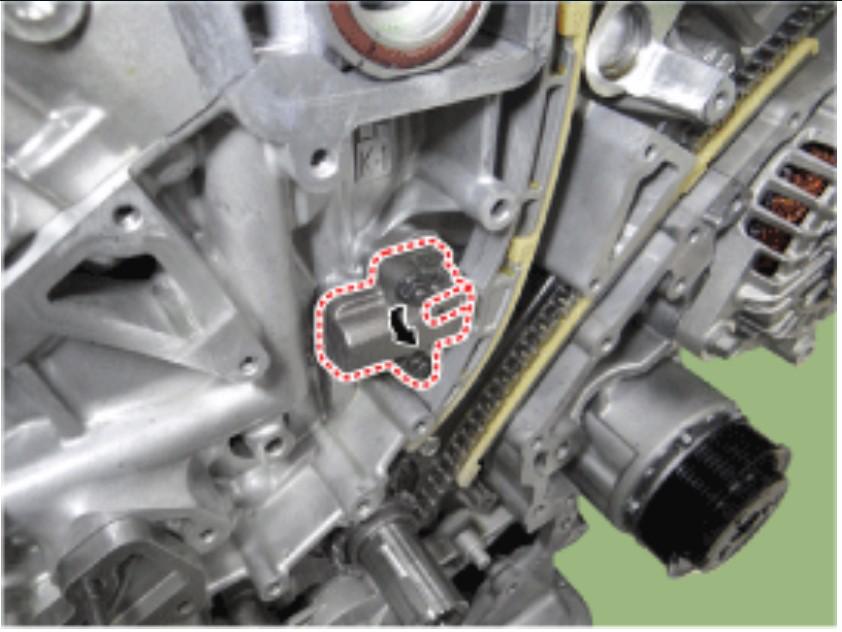

  12. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13043955Courtesy of KIA MOTORS AMERICA, INC.
  13. Remove the LH timing chain cam to cam guide (A).
    G13043956Courtesy of KIA MOTORS AMERICA, INC.

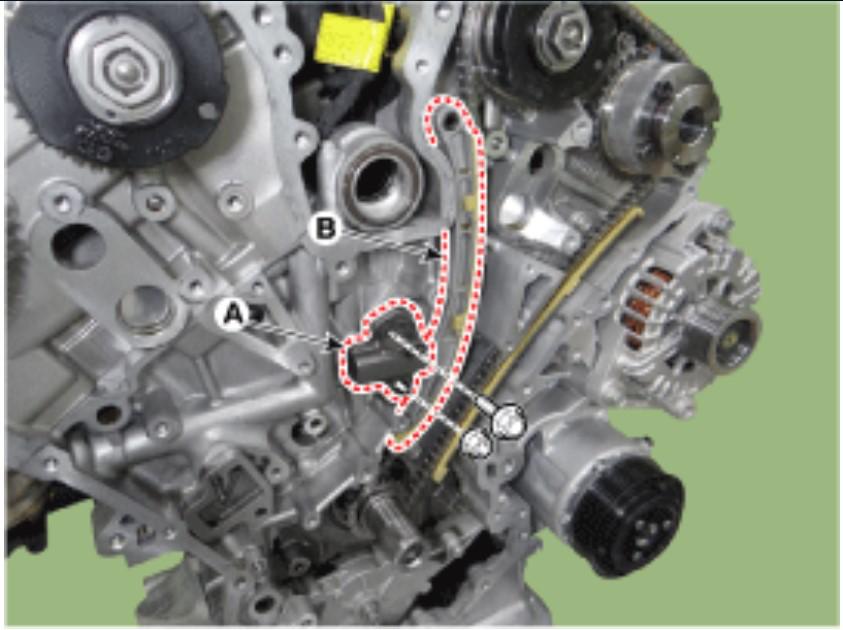

  14. Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).
    G13043957Courtesy of KIA MOTORS AMERICA, INC.

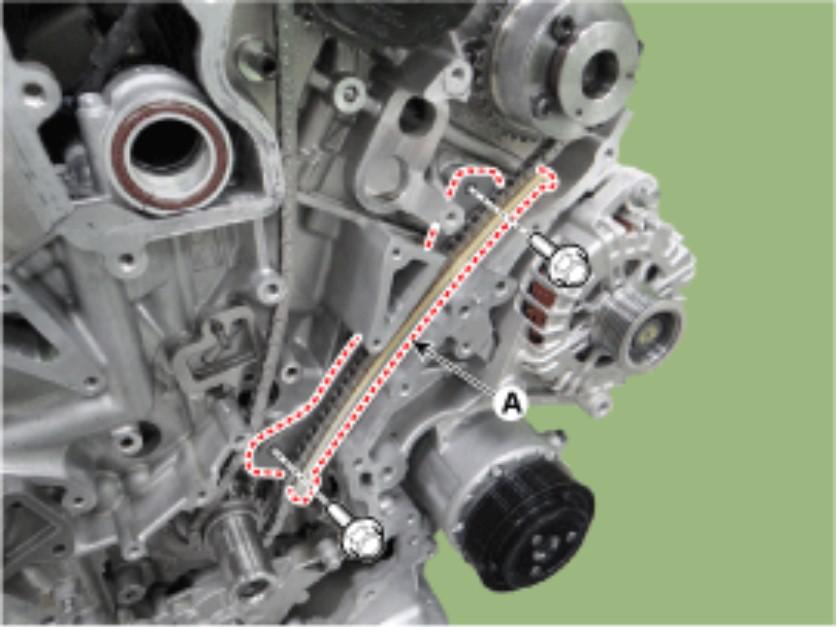

  15. Remove the LH timing chain guide (A).
    G13043958Courtesy of KIA MOTORS AMERICA, INC.

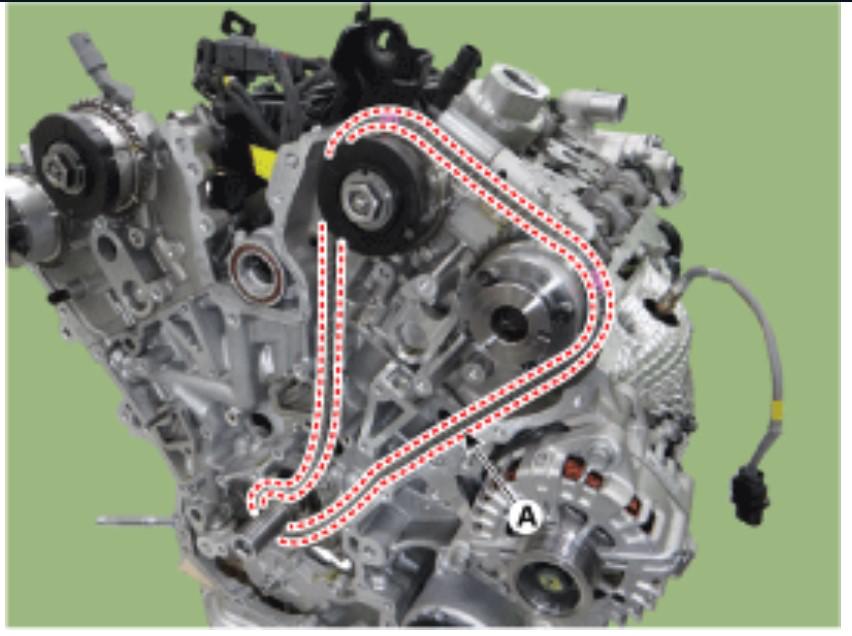

  16. Remove the LH timing chain (A).
    G13043959Courtesy of KIA MOTORS AMERICA, INC.

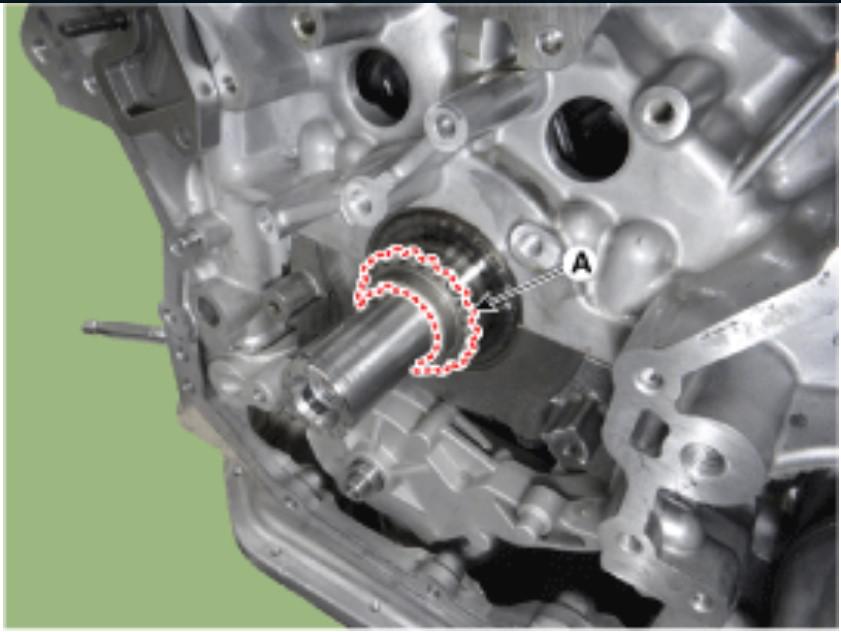

  17. Remove the crankshaft sprocket (A). (LH camshaft drive).
    G13043960Courtesy of KIA MOTORS AMERICA, INC.

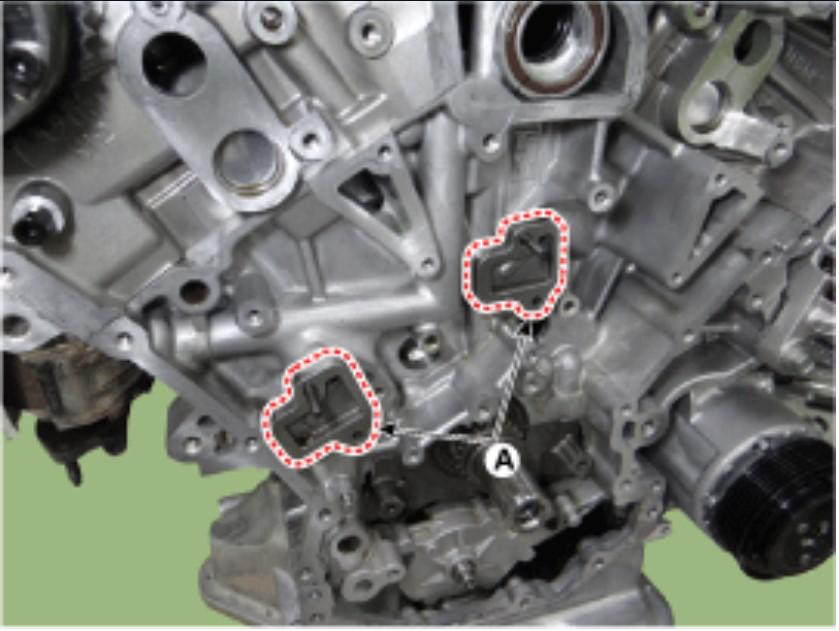

  18. Remove the tensioner adapter assembly (A).
    G13043961Courtesy of KIA MOTORS AMERICA, INC.
