Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  3. Remove the second row seat LH

    (Refer to Body - "REAR SEAT ASSEMBLY ")

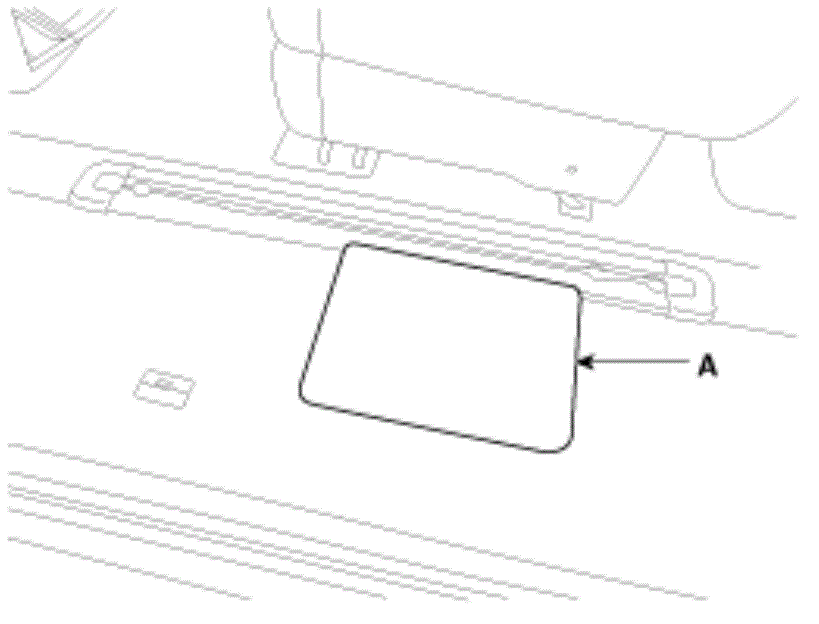

  4. Open the floor mat (A).
    G13044332Courtesy of KIA MOTORS AMERICA, INC.

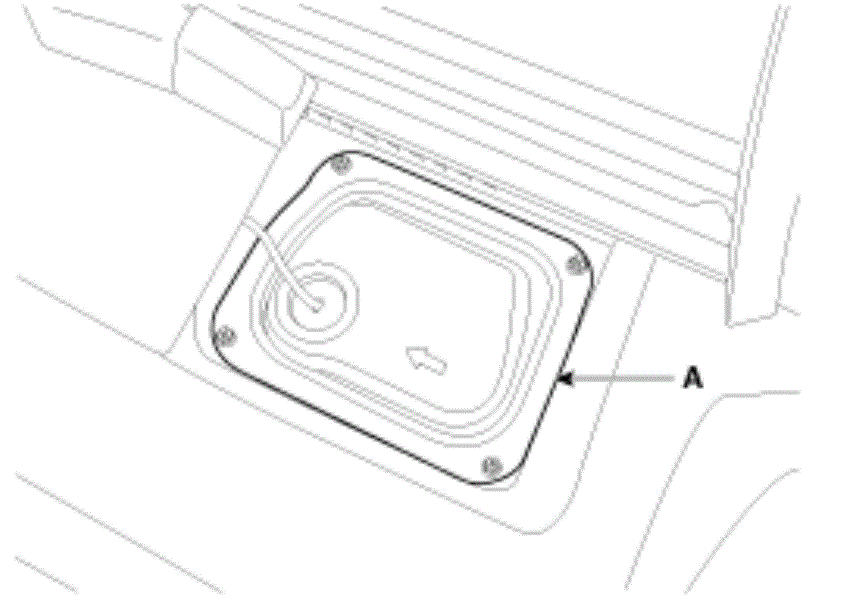

  5. Remove the fuel pump service cover (A).
    G13044333Courtesy of KIA MOTORS AMERICA, INC.

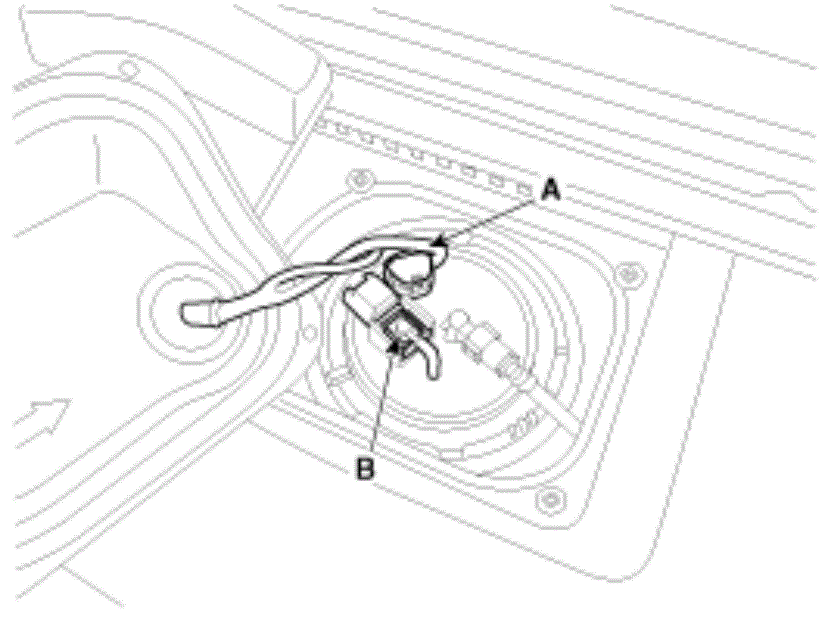

  6. Disconnect the fuel pump connector (A) and fuel tank pressure sensor (B).
    G13044334Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle.

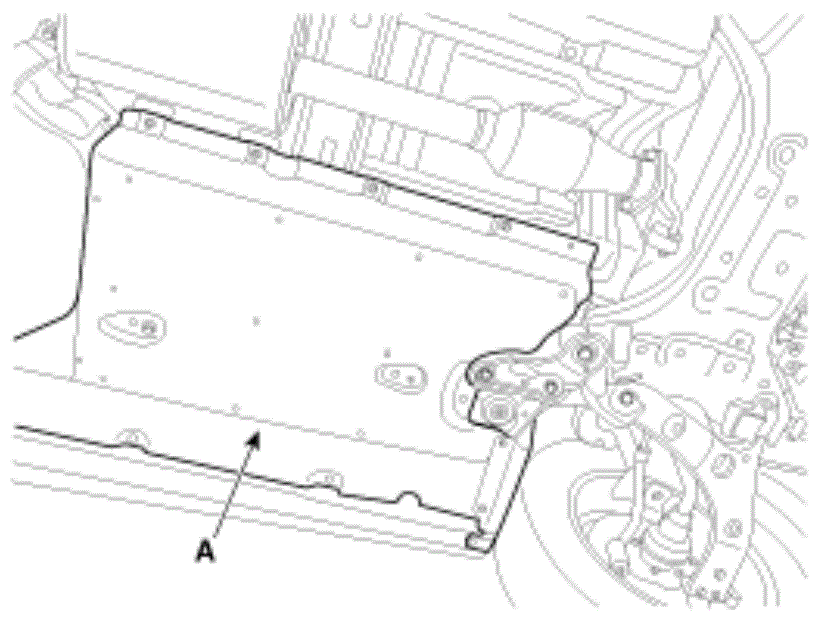

  8. Remove the under cover LH (A).
    G13044335Courtesy of KIA MOTORS AMERICA, INC.

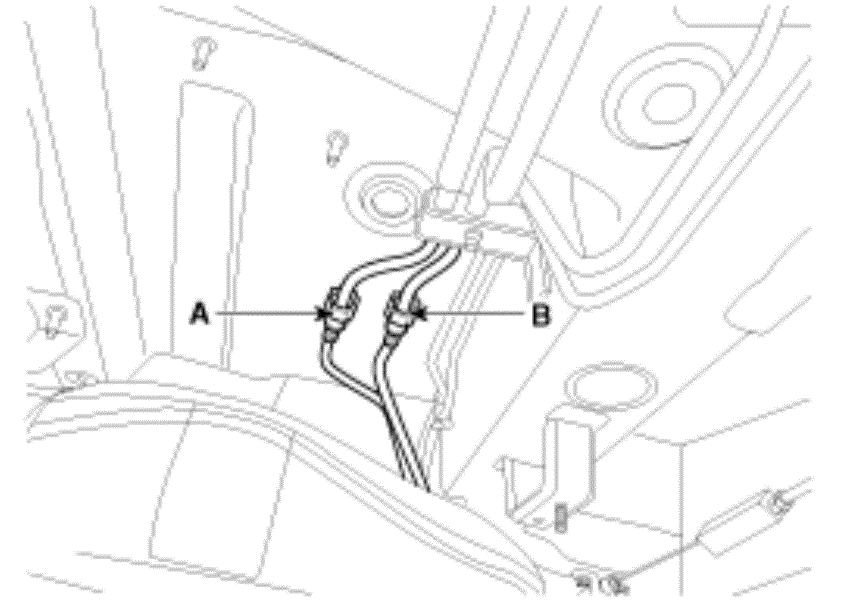

  9. Disconnect the fuel feed tube quick-connector (A) and vapor tube quick-connector (B).
    G13044336Courtesy of KIA MOTORS AMERICA, INC.

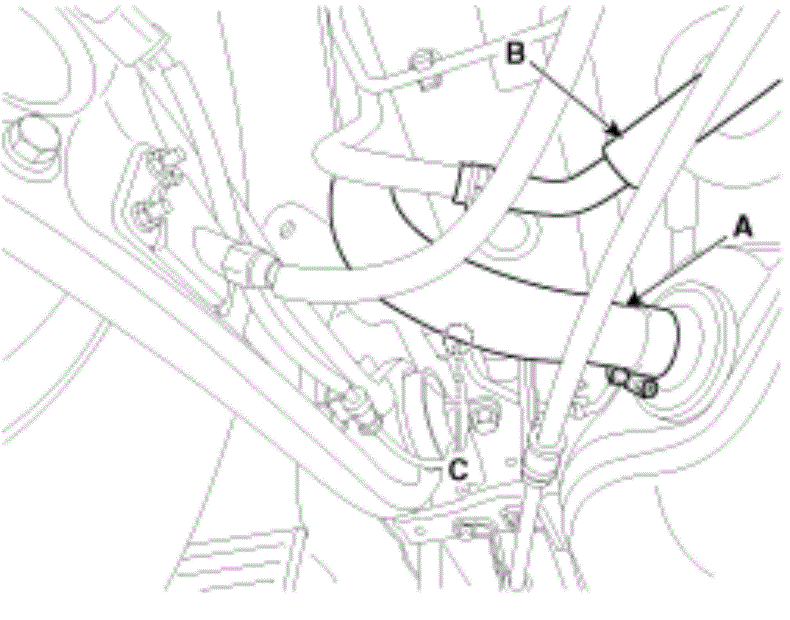

  10. Disconnect the fuel filler hose (A), ventilation hose (B) and canister close valve connector (C).
    G13044337Courtesy of KIA MOTORS AMERICA, INC.

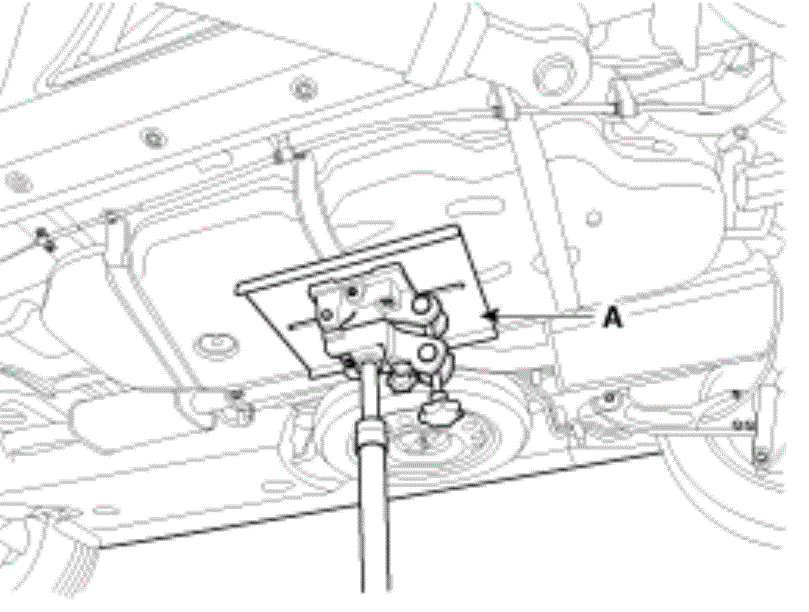

  11. Support the fuel tank with jack (A).
    G13044338Courtesy of KIA MOTORS AMERICA, INC.

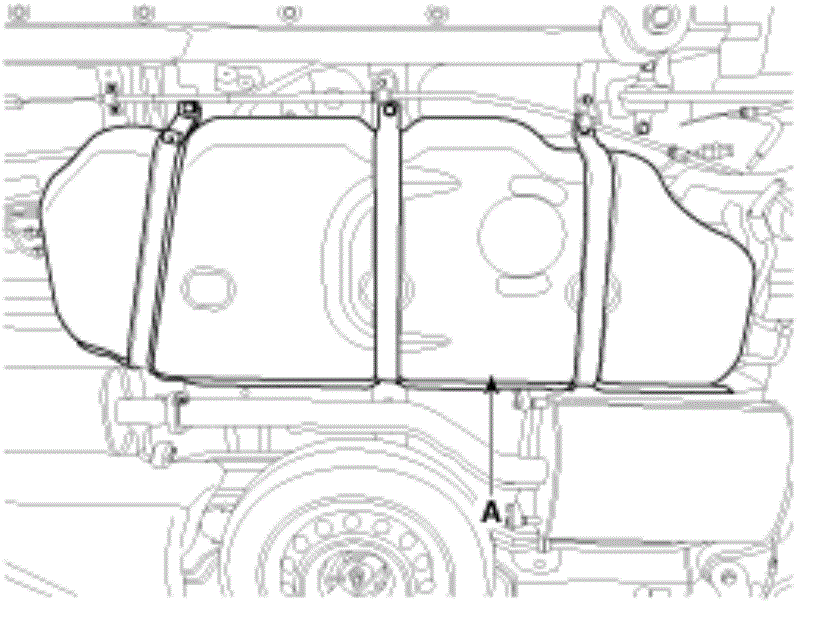

  12. Remove the mounting bolts and fuel tank bands, and then remove the fuel tank (A).
G13044339Courtesy of KIA MOTORS AMERICA, INC.
