Repair Procedures: Replacement

Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

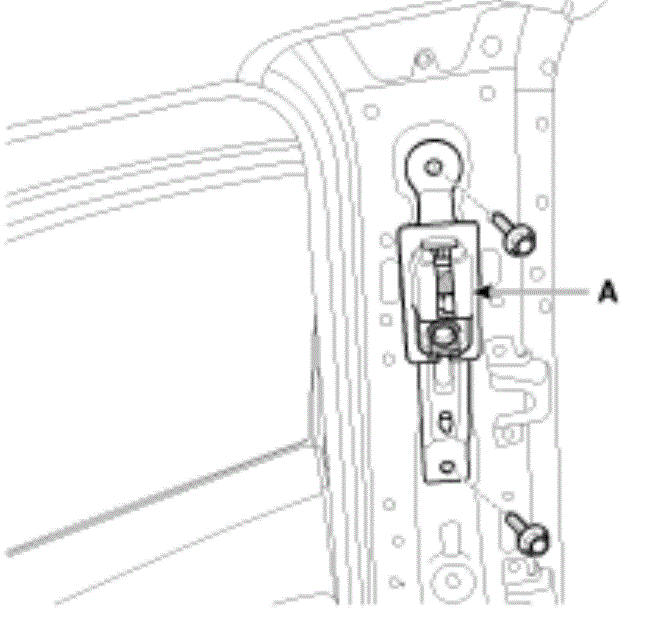

After loosening the mounting bolts, remove the height adjust (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
