Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

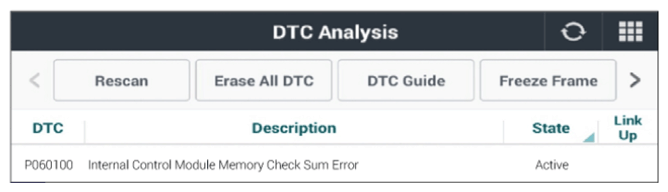

 Fig.1 below
G13043029Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
