Home >> Kia >> 2021 >> Seltos EX >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Front View Camera System >> Front View Camera Unit >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.

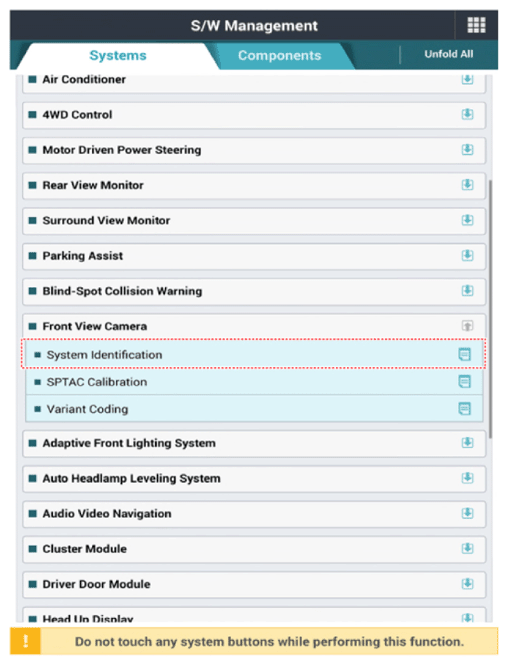

    1. Connect the VCI-II wireless adapter to the Data Link Connector (DLC) in driver side crash pad lower panel, and turn on KDS.
    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".
      G13482359Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal.

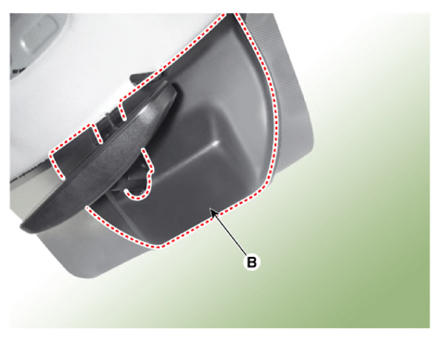

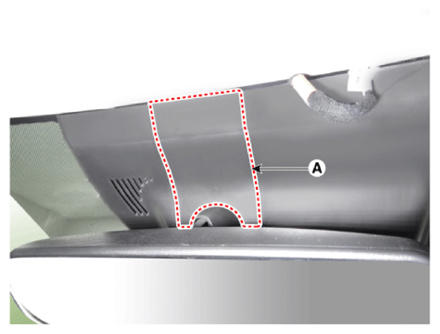

  3. Remove the inside rear view mirror cover (A) and unit cover (B).
    G13482360Courtesy of KIA MOTORS AMERICA, INC.
    G13482361Courtesy of KIA MOTORS AMERICA, INC.

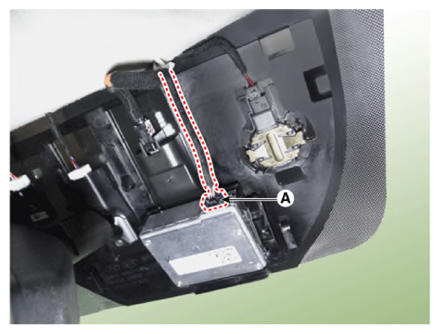

  4. Disconnect the front view camera connector (A).
    G13482362Courtesy of KIA MOTORS AMERICA, INC.

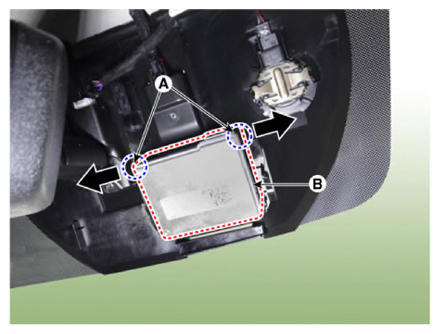

  5. Separate the fixed points (A) of coupler, remove the front view camera (B).
    G13482363Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When separate the fixed points (A), be careful not to damage it.
