Tailgate Lid Handle

  1. Disconnect the negative battery terminal.
  2. Remove the tailgate trim.

    (Refer to Body - "TAILGATE TRIM ")

  3. Check for continuity between the terminals.

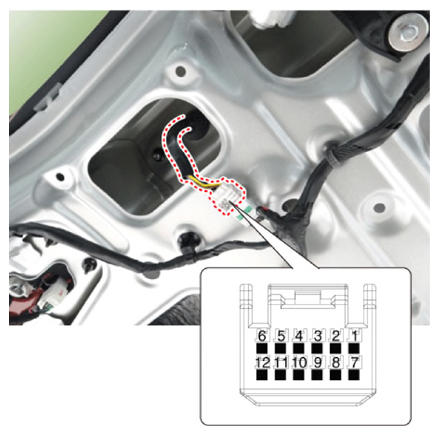

    G13482077Courtesy of KIA MOTORS AMERICA, INC.

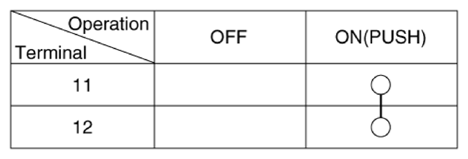

    G13482078Courtesy of KIA MOTORS AMERICA, INC.
