Home >> Kia >> 2021 >> Seltos EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative battery terminal.
  2. Remove the engine room under cover.

    G 1.6 T-GDI  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.0 Nu MPI  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

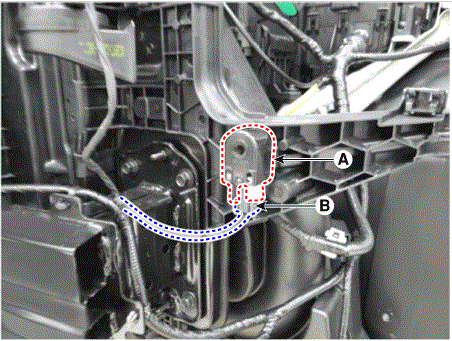

  3. Remove the buzzer (A) after disconnecting the connector (B).
    G13482076Courtesy of KIA MOTORS AMERICA, INC.
