Home >> Kia >> 2021 >> Seltos EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Repair Procedures >> Removal >> Front Power Window Motor

Front Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

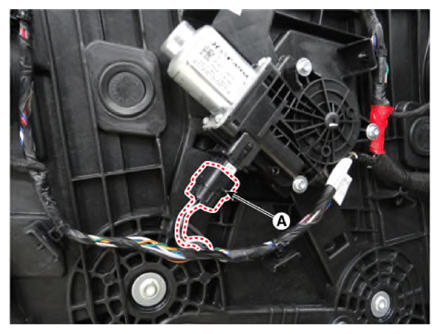

  3. Disconnect the front power window motor connector (A).
    G13486932Courtesy of KIA MOTORS AMERICA, INC.

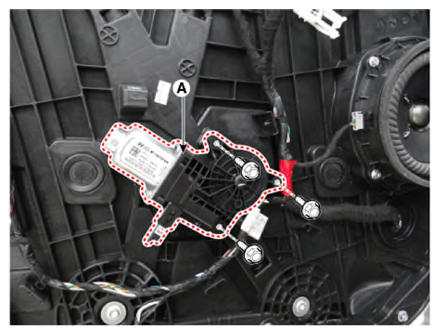

  4. Remove the front power window motor (A) after loosening the mounting bolts.
    G13486933Courtesy of KIA MOTORS AMERICA, INC.
