Repair Procedures: Removal
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

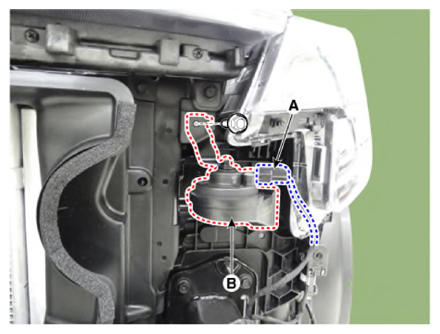

- Disconnect the horn connector (A).
- Remove the horn (B) by loosening the bolt.
Tightening torque:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)
