Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Disconnect the PCV hose (A).
    G13483083Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the VCMA connector (A).
  4. Remove the VCMA mounting bolts (B).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13483084Courtesy of KIA MOTORS AMERICA, INC.

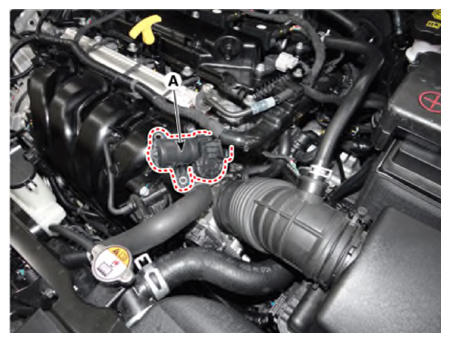

  5. Remove the VCMA (A).
    G13483085Courtesy of KIA MOTORS AMERICA, INC.
