Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

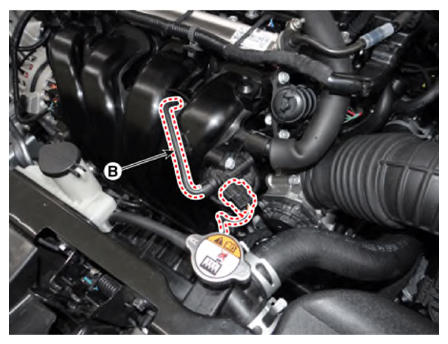

  2. Disconnect the variable intake solenoid valve connector (A) and vacuum hose (B).
    G13483076Courtesy of KIA MOTORS AMERICA, INC.

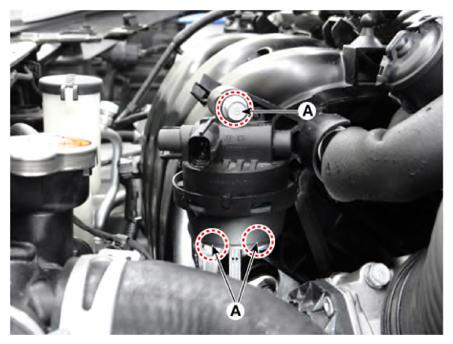

  3. Remove the VIS valve after loosening the mounting bolts (A).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13483077Courtesy of KIA MOTORS AMERICA, INC.

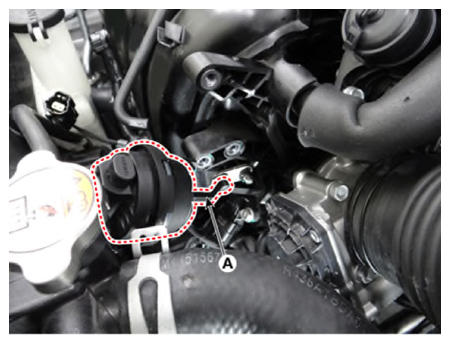

  4. Remove the VIS valve (A) after loosening the rod.
    G13483078Courtesy of KIA MOTORS AMERICA, INC.
