Home >> Kia >> 2021 >> Seltos EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System >> ISG OFF Switch >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Remove the side crash pad switch.

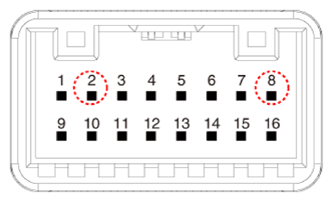

  2. After pushing the ISG OFF switch, check for continuity between the ground (pin 8) and signal (pin 2).
    G13480702Courtesy of KIA MOTORS AMERICA, INC.
