Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

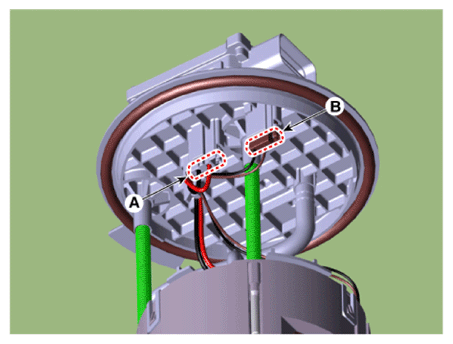

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G13483154Courtesy of KIA MOTORS AMERICA, INC.

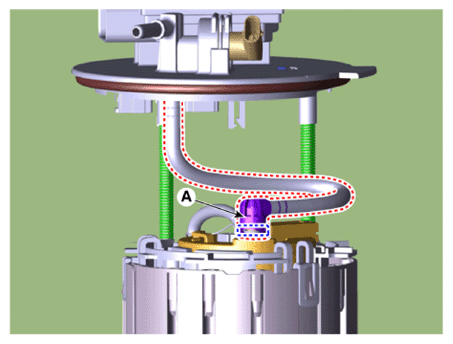

  3. Disconnect the fuel feed tube (A) after removing the fixing clip.
    G13483155Courtesy of KIA MOTORS AMERICA, INC.

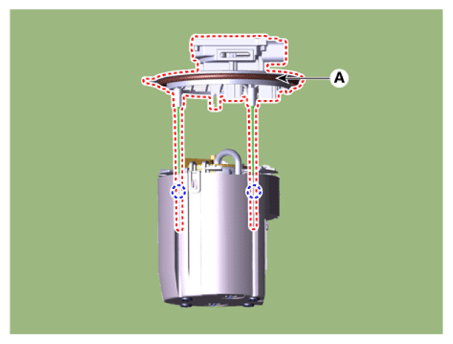

  4. Remove the head assembly (A) after releasing the fixing hook.
    G13483156Courtesy of KIA MOTORS AMERICA, INC.
