Repair Procedures: Inspection

Information

Transfer oil should be inspected and refilled every 60000 km (40000 mile)/4 year.

1. Remove the under cover.

   G 1.6 T-GDI GAMMA  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

   G 2.0 MPI NU  (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Remove the oil filler plug (A).

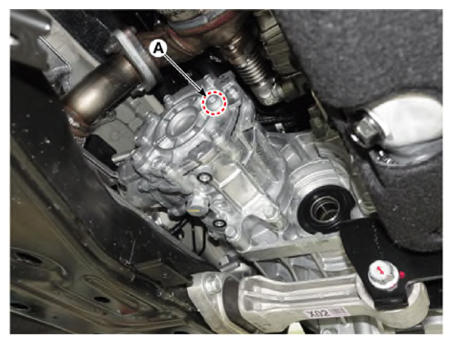

   [Gasoline T 1.6]

   Courtesy of KIA MOTORS AMERICA, INC.

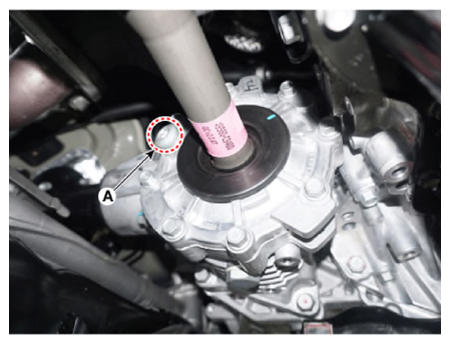

   [Gasoline 2.0]

   Courtesy of KIA MOTORS AMERICA, INC.

3. Check the oil level.

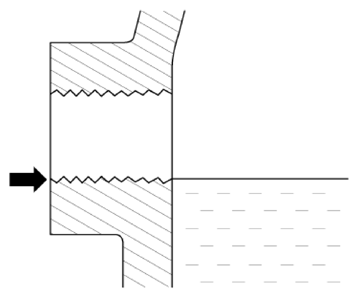

4. Oil level must be up to fill the hole, if not, add oil until it runs over.

   Specification:

   Hypoid gear oil API GL-5, SAE 75W/85 (SK HCT-5 75W/85 or equivalent)

   Courtesy of KIA MOTORS AMERICA, INC.

5. Install the oil filler plug (A).

   Tightening torque:

   39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

   [Gasoline T 1.6]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Gasoline 2.0]

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Do not reuse the used filler plug gasket.
