S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Clutch Learning (Read/Write)" in "S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8

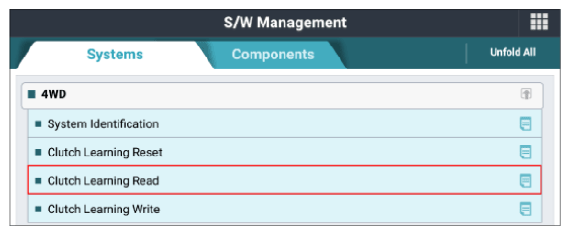

G13485122Courtesy of KIA MOTORS AMERICA, INC.

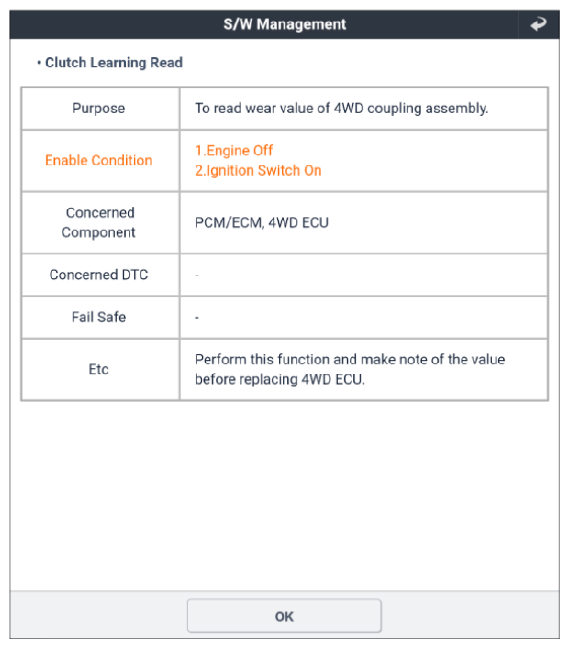

G13485123Courtesy of KIA MOTORS AMERICA, INC.

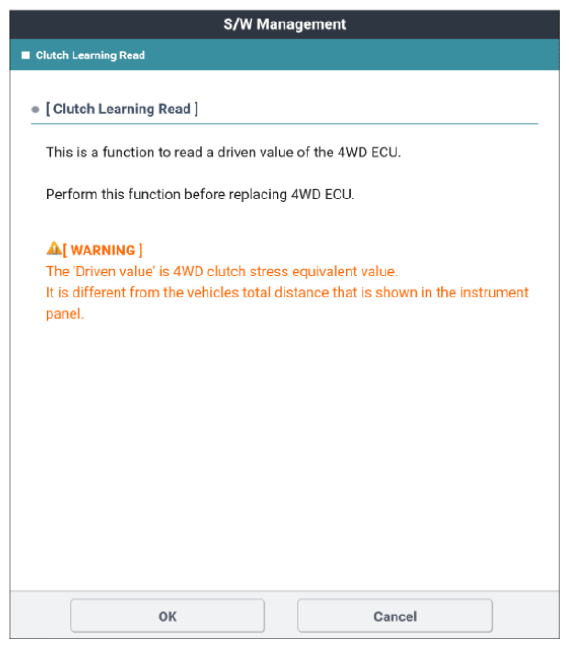

G13485124Courtesy of KIA MOTORS AMERICA, INC.

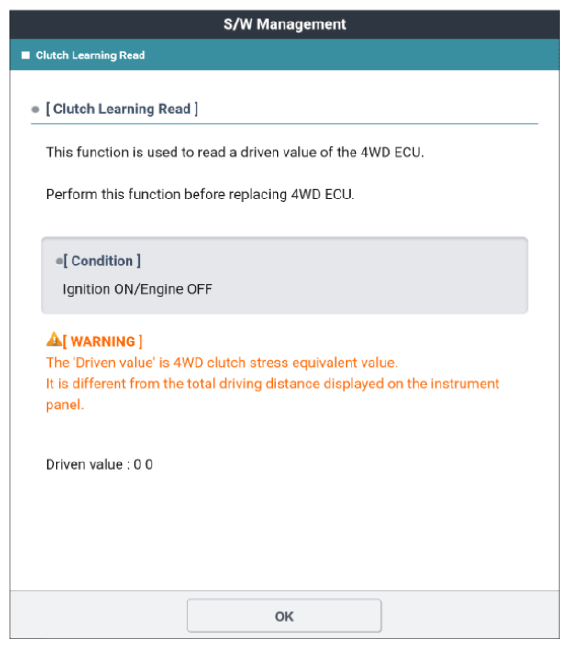

G13485125Courtesy of KIA MOTORS AMERICA, INC.

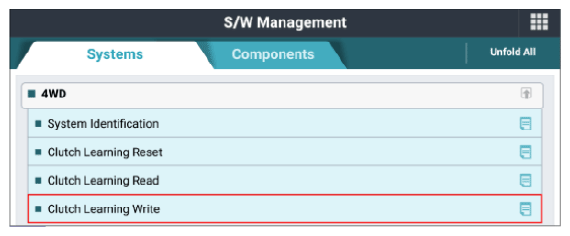

G13485126Courtesy of KIA MOTORS AMERICA, INC.

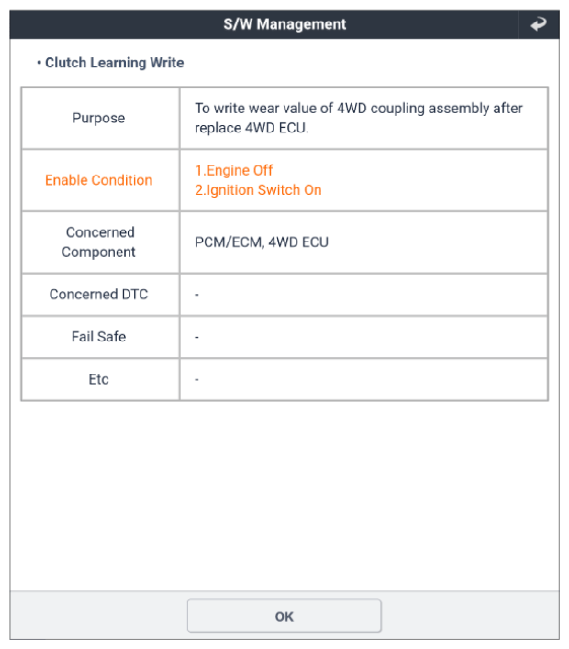

G13485127Courtesy of KIA MOTORS AMERICA, INC.

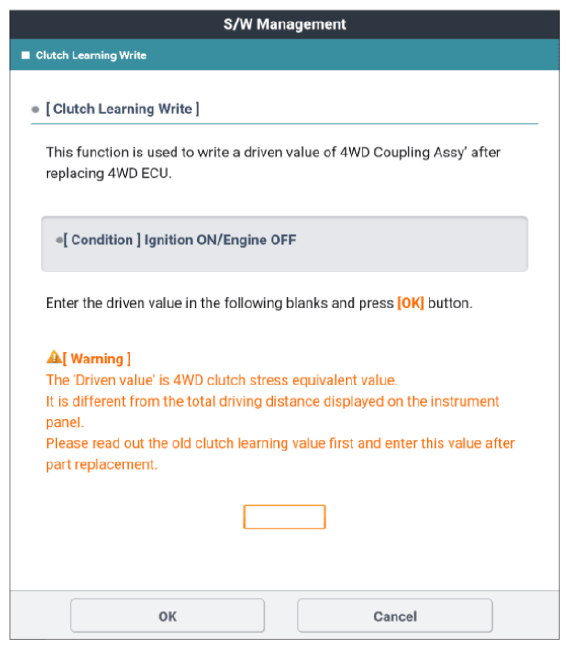

G13485128Courtesy of KIA MOTORS AMERICA, INC.

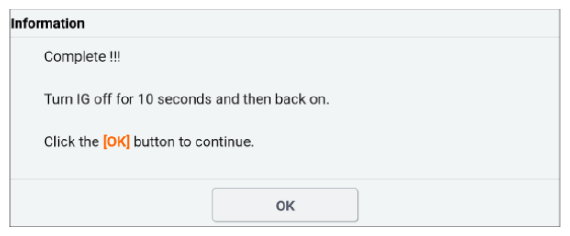

G13485129Courtesy of KIA MOTORS AMERICA, INC.
