Repair Procedures: Cleaning

  1. Remove the ETC.

    (Refer to ETC (Electronic Throttle Control) System - "REMOVAL ")

    NOTE: Cleaning the ETC after removing it.

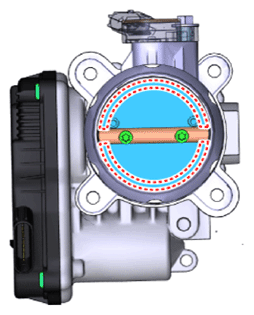

  2. Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.
    G13576034Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Take care not to getting into foreign matter for ETC.
    • Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened by cleaning fluid.
    • Be careful as fingers or cloth may get caught in the valve.
  3. Install the ETC.

    (Refer to Electronic Throttle Control System - "INSTALLATION ")

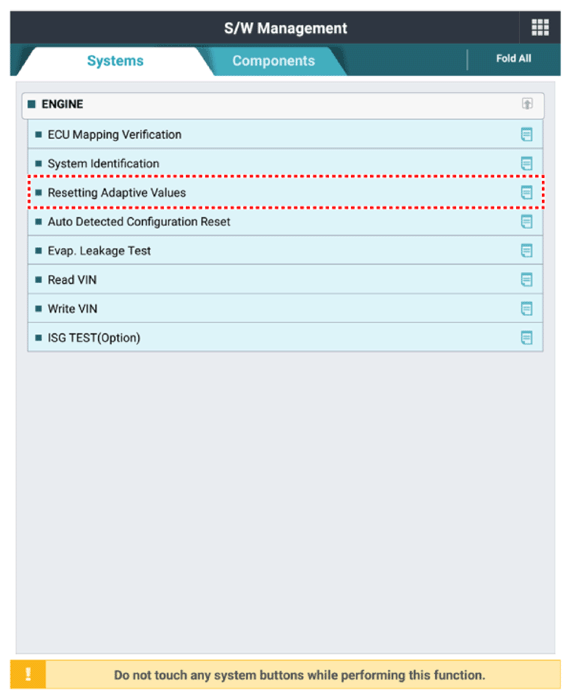

  4. Reset the ECM adaptive values after replacing the ETC.
    G13576035Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the ETC learning procedure.

    (Refer to ETC - "ADJUSTMENT ")
