Home >> Kia >> 2021 >> Soul EX >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Inspection >> Buzzer

Repair Procedures: Inspection: Buzzer

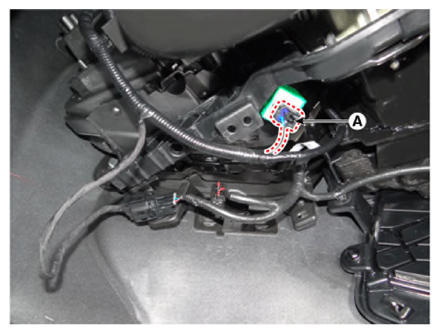

  1. Disconnect the buzzer connector (A).
    G13282847Courtesy of KIA MOTORS AMERICA, INC.
  2. Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
