Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.0 MPI NU(ATKINSON) (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

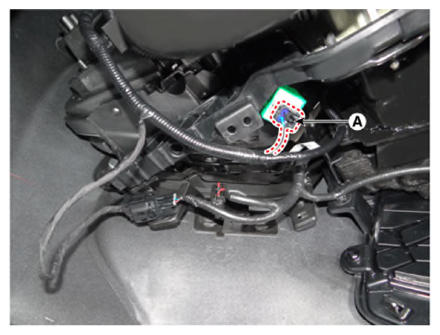

  3. Disconnect the buzzer connector (A).
    G13282843Courtesy of KIA MOTORS AMERICA, INC.

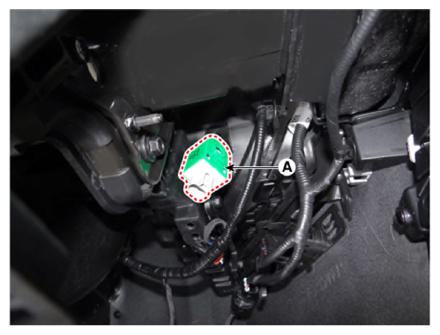

  4. Remove the buzzer (A).
    G13282844Courtesy of KIA MOTORS AMERICA, INC.
