Battery Terminal

  1. Move back and forth to check if the battery terminals (A) are loose or corroded. Clean any corroded terminals.
    G13282388Courtesy of KIA MOTORS AMERICA, INC.
    G13282389Courtesy of KIA MOTORS AMERICA, INC.

    If the battery positive connection is loose, disconnect the ground (GND) cable first before attempting to remove or tighten the positive connection to prevent personal injury.

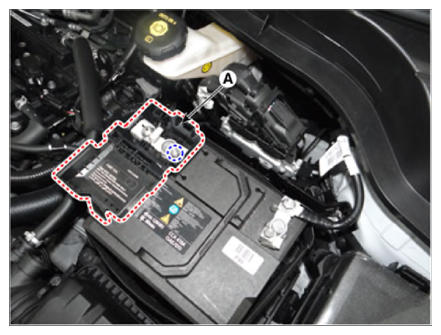

  2. If the battery clamp on positive (+) battery terminal is not seated securely:
    1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
    2. Tighten battery clamp (A) on positive (+) battery terminal.

      Positive (+) battery terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

    G13282390Courtesy of KIA MOTORS AMERICA, INC.

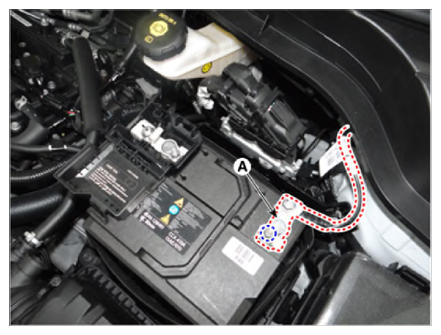

  3. If the battery clamp on negative (-) battery terminal is not seated securely:
  1. Tighten battery clamp (A) on negative (-) battery terminal.

    Negative (-) battery terminal:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

G13282391Courtesy of KIA MOTORS AMERICA, INC.
